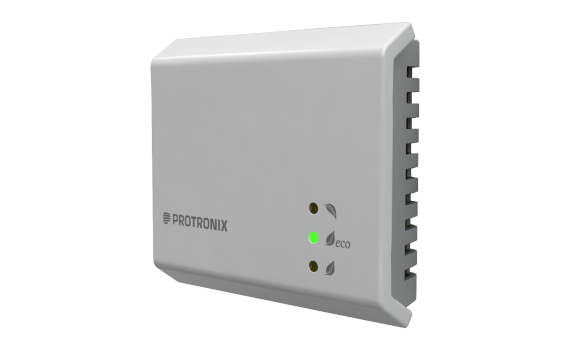

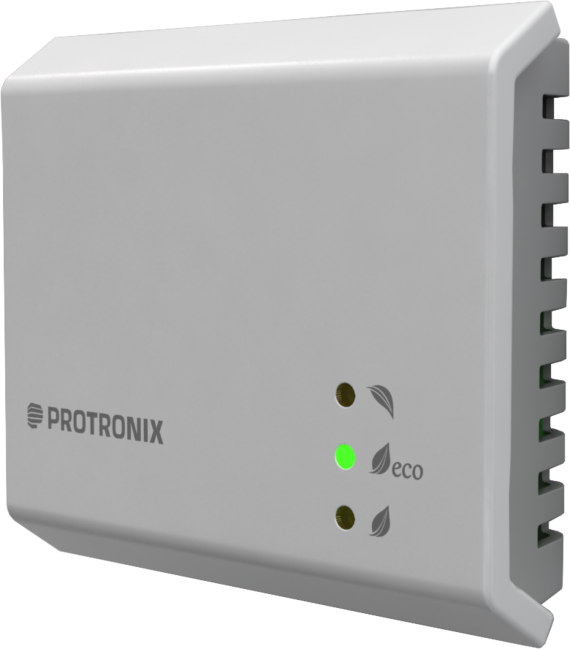

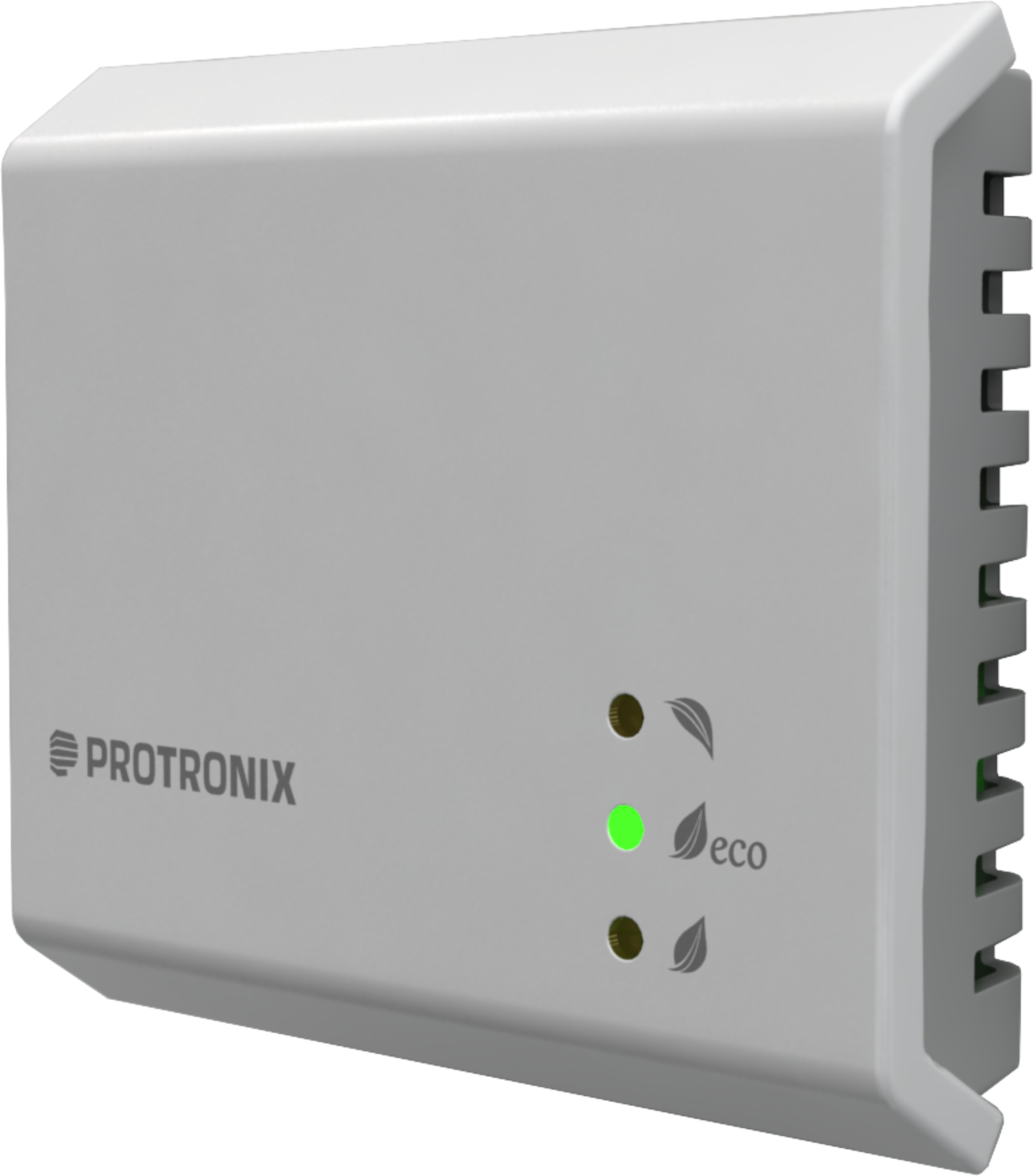

Protronix NLB-CO2+RH+T-5-IQRF battery combined sensor
Battery combined CO2, relative humidity and temperature IQRF sensor
- Category
- End Devices
- Status
- Available
- HWPID
- 16385 (0x4001)
- Product version
- 1
- Manufacturing location
- Czech Republic
Battery combined sensor NLB-CO2-RH-T-5-IQRF is used to monitor air quality inside buildings and power control ventilation (HVAC) systems according to current levels of air internal air quality. The sensor measures the concentration of carbon dioxide (CO2), relative humidity (RH) and temperature (T) in air. It can be effectively used in offices, classrooms, shopping centers, homes, restaurants, fitness centers, commercial buildings, etc.
- Battery supply voltage - AA, LR6
- CO2 measuring range - 5000 ppm
- RH measuring range - 0-100% RH
- T measuring range - 0-40 °C
Not required maintenance during operation
Long life and stability
Parameters
| Power supply | 2x AA |
|---|
Documentation
- ds-nlb-co2-rh-t-5-iqrf-cz-v1-180622.pdf (PDF, 412 kB)
- ds-nlb-co2-rh-t-5-iqrf-en-v1-200116.pdf (PDF, 385 kB)
- 1_ds-nlb-co2-rh-t-5-iqrf-cz-v1-180622.pdf (PDF, 412 kB)
- um-nlb-co2-rh-t-5-iqrf-en-v1-200116.pdf (PDF, 686 kB)
- 1_um-nlb-iqrf-komunikace-en-v2-191212.pdf (PDF, 978 kB)
