Marketplace

Liteplan S/DLP/1 DALI Addressable Range

DALI Addressable Range wth IQRF

Company info:

Name: Liteplan Limited
Street: Apex House, Bryant Avenue
City: Romford
Country: United Kingdom

Info about product

IQRF Interoperable

RF mode-std

Category: end devices
Status: Available
Manufacturer Name: Liteplan Ltd.
HWPID: -1 (0xffffffffffffffff)
Product Version: 1
Power Supply: 230-240 Volts AC – 50/60Hz
Manuf. Location: United Kingdom

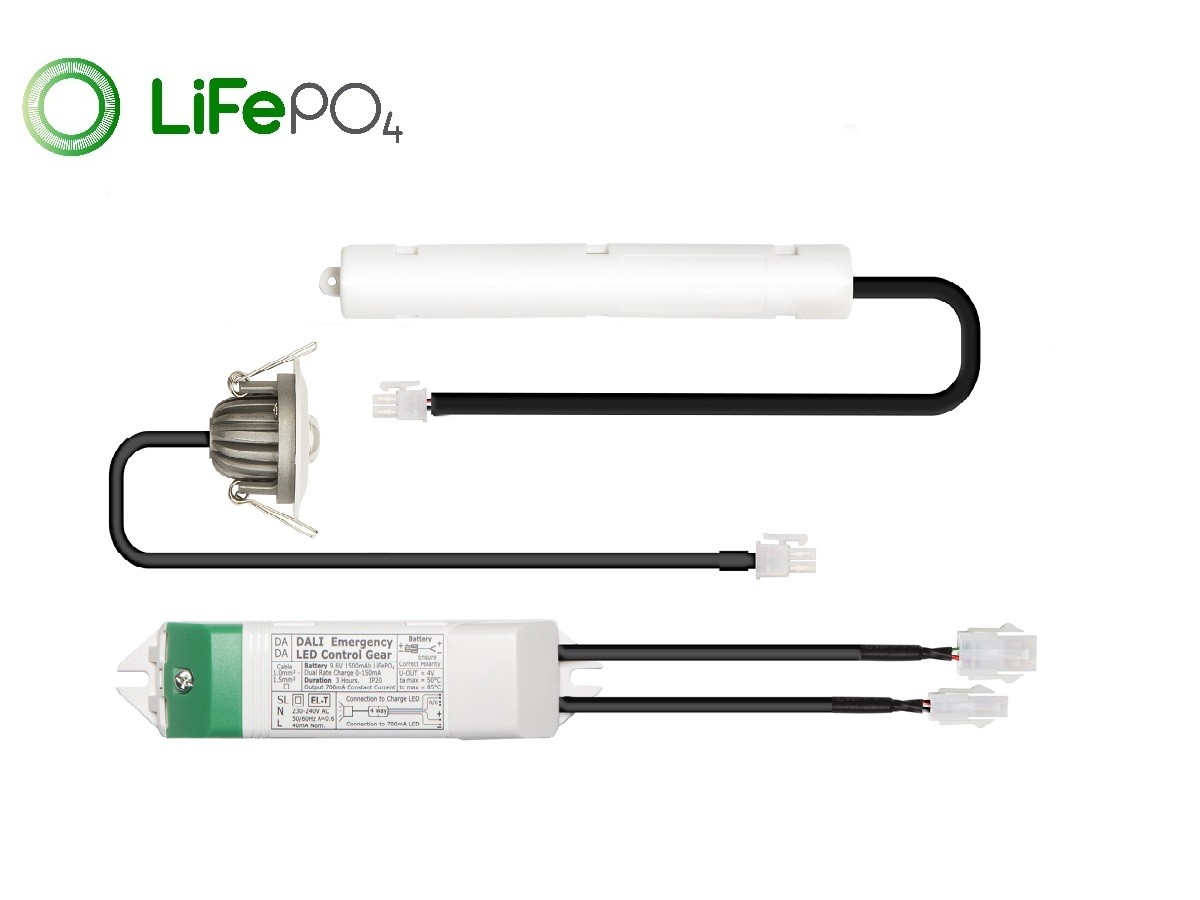

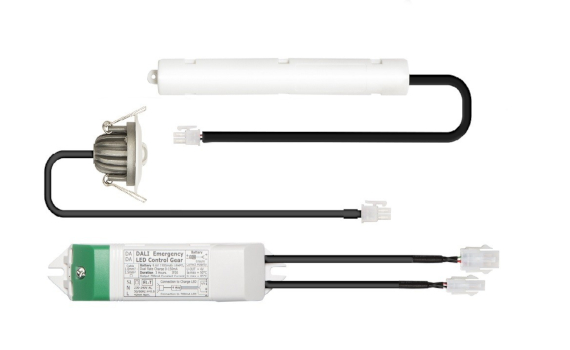

A 3 hour 550mA DALI self-test emergency driver designed for constant current LED devices, supplied complete with the latest extra long life LiFePO4 battery packs. This product has plug and play capability with strain relief on the cables making it suitable for recessing into the ceiling void. In keeping with the DALI standard, this unit will revert to standalone self-test if not connected to a DALI operating system. For a full list of our compatible devices, please see our LED Device range.

This range pioneers the use of LiFePO4 battery technology, dramatically reducing energy consumption and facilities management labour due their long operational life.



Specifications

  • The Latest LiFePO4 Extra Long Life Batteries
  • Cables with Strain Relief
  • 550mA Output
  • If DALI is not Present, Unit Defaults to Self-Test Operation



  S-DLP/1
Input Voltage 230-240 Volts AC – 50/60Hz
Power Rating Maintained: 40mA λ = 0.6
Non-Maintained: 16mA λ = 0.48
Em. Duration 3 Hours
Battery Type LiFePO4
Battery Voltage 3.2V
Battery Capacity 3.8Ah
Charge Current Dual Rate 0-150mA
Recharge Time 24 Hours
Discarge Current 400mA Nominal
TC Max 70°C Module / 50°C Battery
Output Load 1 x 3W
Output Current 550mA
Module Dims. 164mm x 35mm x 28mm
Fixing Centres 150mm x M4
Overall Weight (with LED) 0.41Kg





This product can be combined with IQRF DALI bridge.

Documentation

3_self Test Dali Fault.pdf (PDF, 110.56 kB)

S Dlp 3 Installation Instruction.pdf (PDF, 380.65 kB)

S Dlp 1 Datasheet Web.pdf (PDF, 165.64 kB)

1_faults On Dali Emergencies.pdf (PDF, 152.99 kB)

2017 Ce Selfcont Led S Dlp 3.pdf (PDF, 109.22 kB)

Led 43 Oa 550ma Am1 1.ldt (LDT, 5.85 kB)

Gnc 21662 Led 43 Fl 550ma.ldt (LDT, 11.73 kB)

Led 43 Co 550ma Am1 1.ldt (LDT, 5.87 kB)

Product website:
http://www.liteplan.com
