Marketplace

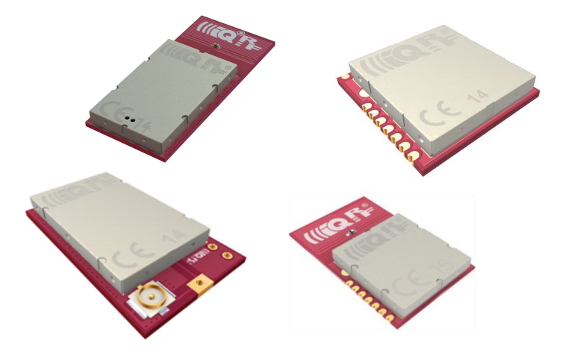

IQRF Transceivers

IQRF transceivers are basic element of the IQRF wireless mesh network

Get on E-shop

Company info:

Name: IQRF Tech s.r.o.
Street: Prumyslova 1275
City: Jicin
Country: Czech Republic

Info about product

Category: development
Status: Available
Power Supply: 3.0 - 3.4 V / 3.1 - 5.3 V
Manuf. Location: Czech Republic

More information about IQRF transceivers on iqrf.org.

Learn how to use them in lighting...

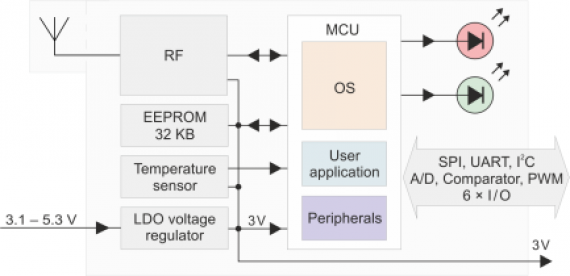

TR-72D series

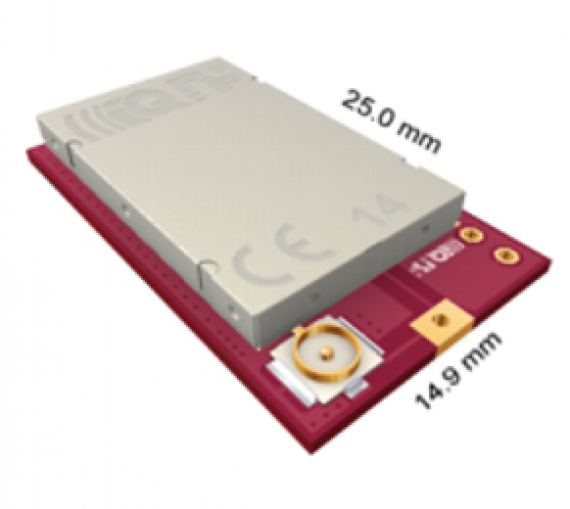

TR-72DAT, TR-72DCT

  • TR-52D successor, high RF power (12.5 mW)
  • 6 I/O pins
  • Serial EEPROM 32 KB
  • Antenna options: Soldering pad-hole, U.FL connector or on-board PCB antenna
  • Optional precision temperature sensor
  • 2 LEDs
  • LDO voltage regulator, power supply 3.1 - 5.3 V
  • Mounting into SIM card connector KON-SIM-02

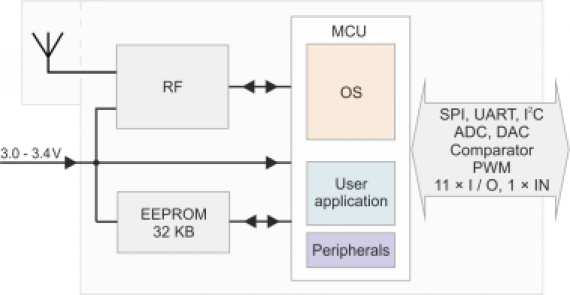

TR-76D series

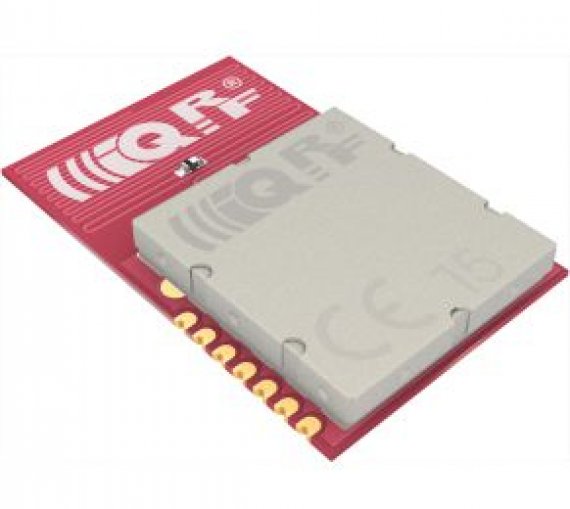

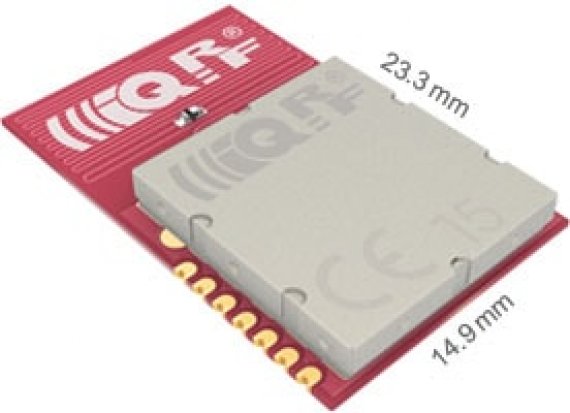

TR-76D, TR-76DA

  • TR-56D successor, high RF power (12.5 mW)
  • 12 I/O pins
  • IQRF transceiver with the smallest footprint
  • Very low consumption and the lowest price
  • Serial EEPROM 32 KB
  • Antenna options: soldering pad-hole or on-board PCB antenna
  • No temperature sensor, no LEDs
  • No LDO voltage regulator, power supply 3.0 V to 3.4 V
  • Intended for SMT mounting,
  • pluging into SIM connector KON-SIM-02 possible.
  • A lot of interfacing possibilities

Documentation

Datasheet Tr 76d 160304.pdf (PDF, 1.52 MB)

Datasheet Tr 72d 160302.pdf (PDF, 1.31 MB)

Product website:
http://iqrf.shop/product/development/data_controlled_transceivers/
