Marketplace

IQRF click

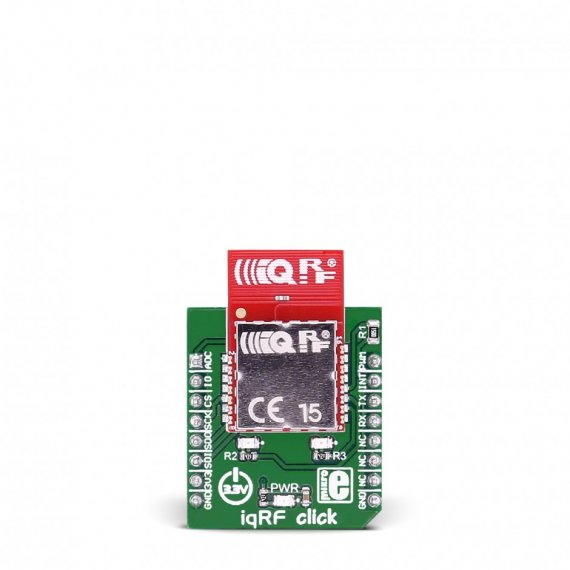

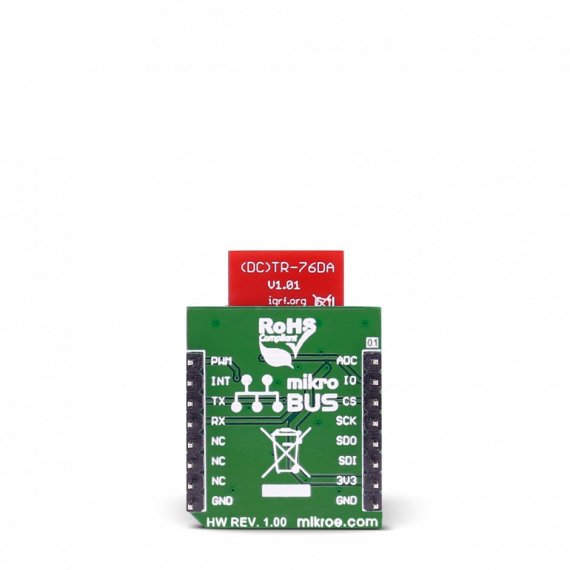

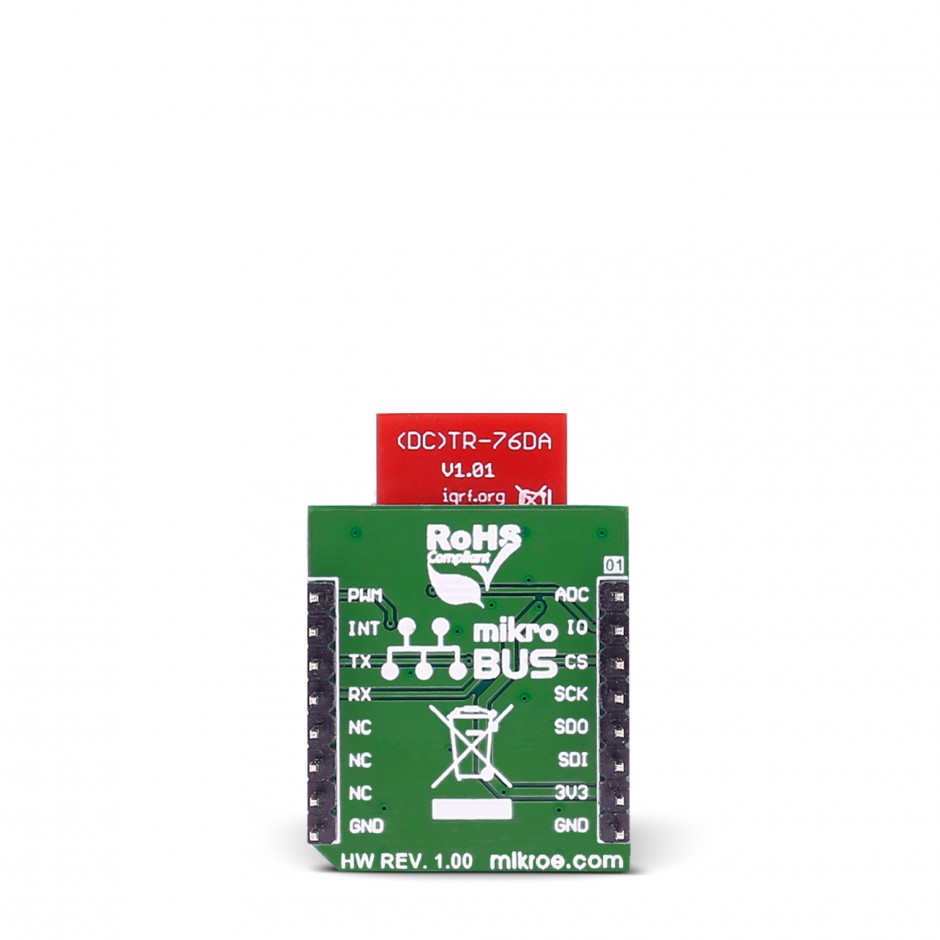

IQRF click carries the DCTR-76DA RF transceiver, operating in the 868/916 MHz frequency. The click is designed to run on a 3.3V power supply. It communicates with the target microcontroller over SPI or UART interface, with additional functionality provided by the following pins on the mikroBUS™ line: AN, RST, PWM, INT.

Get on E-shop Get on GitHub

Company info:

Name: MikroElektronika D.O.O.
Street: Batajnički drum 23
City: Zemun, Belgrade
Country: Serbia

Info about product

RF mode-lp RF mode-std

Product ID: MIKROE-2586
Category: development
Status: Active
Manufacturer Name: Mikroelektronka
Product Version: HW Rev 1.01
Power Supply: 3.3V
Manuf. Location: Serbia, Belgrade

IQRF click carries the DCTR-76DA RF transceiver, operating in the 868/916 MHz frequency.

The click is designed to run on a 3.3V power supply. It communicates with the target microcontroller over SPI or UART interface, with additional functionality provided by the following pins on the mikroBUS™ line: AN, RST, PWM, INT.



IQRF click carries the DCTR-76DA RF transceiver, operating in the 868/916 MHz frequency. The click is designed to run on a 3.3V power supply. It communicates with the target microcontroller over SPI or UART interface, with additional functionality provided by the following pins on the mikroBUS™ line: AN, RST, PWM, INT.



RF transceiver modules DCTR-72DA fit in the SIM connector. They are fully programmable under IQRF OS operating system and allow to utilize hardware profiles under DPA framework.

To upload application codes in DCTRs and configure DCTR parameters, CK-USB-04A kit is intended. When the application is uploaded to the IQRF it can be put in microBUS™ socket and communicate with it with MCU.

Documentation

1_iqrf Click Schematic V101.pdf (PDF, 616.43 kB)

Product website:
https://www.mikroe.com/iqrf-click
