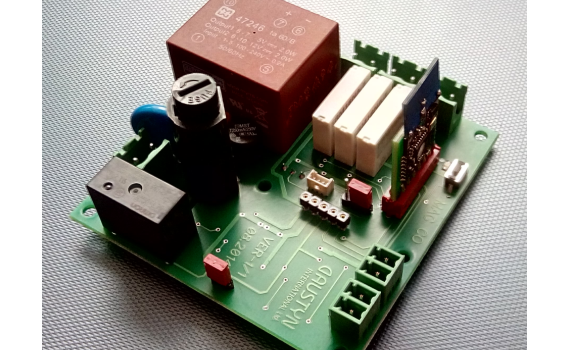

MAG CO - control board
Wireless Power IO board with relays and temperature sensor, LED indication, DC and AC supply
Company info:
Name: Austyn International s.r.o
Country: Slovakia
Info about product
Product ID: AUS_00.00.01
Category: end devices
Manufacturer Name: AUSTYN International s.r.o.
Product Version: 1
Power Supply: 230 V AC
Manuf. Location: Slovakia
Designed as control board for various devices e.g. heaters, lights, pumps, servo-drives, etc. Board is powered from mains and contains following:
- 3 relays (5A/230VAC/30VDC)
- relay with 10A/230V AC output with current metering 0~2A (jumper off), 0~5A (jumper on) 8-bit resolution
- DALLAS (DS18B20+) onboard or external – jumper selectable
- DAC 1 OUT (0 - 10V) 5bit resolution
- Digital input – 0V AC / 230V AC or open/close selectable
- Bonding button with LED indication
- Reset button (not DCTR module reset) with LED indication
- Slot for DCTR-56x module
