Marketplace

CQC Lighting Components manufacture

Lighting Components manufacture services

Get on E-shop

Company info:

Name: Qicheng Electrical Equipment Co.,Ltd
Street: No. 57, Liule Road, Liushi, Yueqing
City: Wenzhou
Country: China

Info about product

Category: services
Manufacturer Name: CQC/Qicheng Electrical Equipment Co.,Ltd
Manuf. Location: Zhejiang, China

CQC (Qicheng Electrical Equipment Co., Ltd) is one of the leading lighting components manufacturer from China which can support you with you needs.



Product Introduction

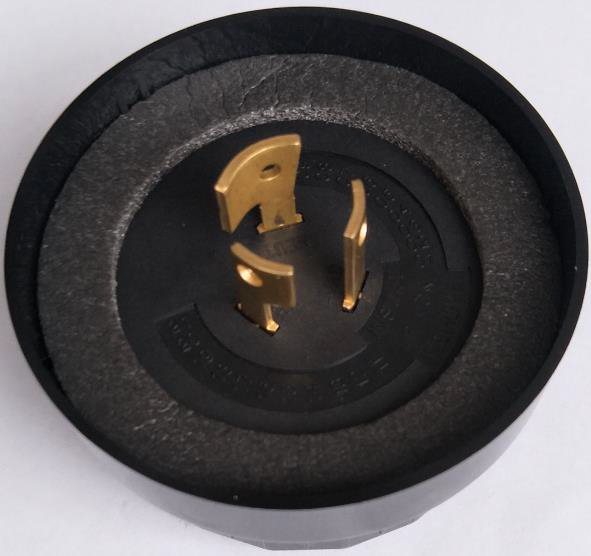

NEMA Shorting cap (LC-10K)

  • ANSI C136.10 & UL773 Standard
  • UL File Number: E178670
  • Rated Voltage: 0 - 480 VAC
  • Load Rated: Max current 15A (LC-10K Shorting cap)
  • Operating Temperature: -40°C to +70°C
  • Housing: UV stabilized PC
  • Size: 74 mm

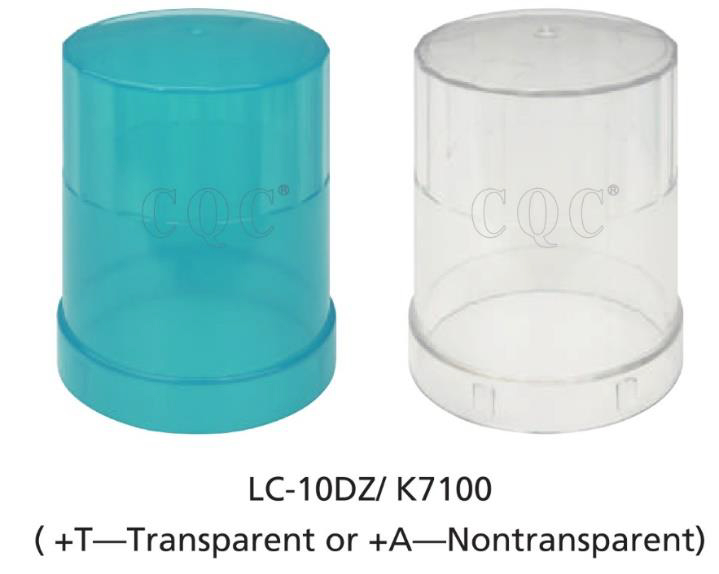

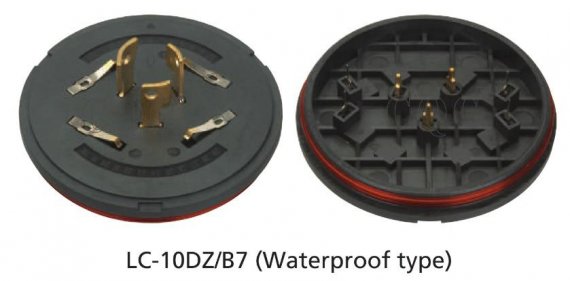

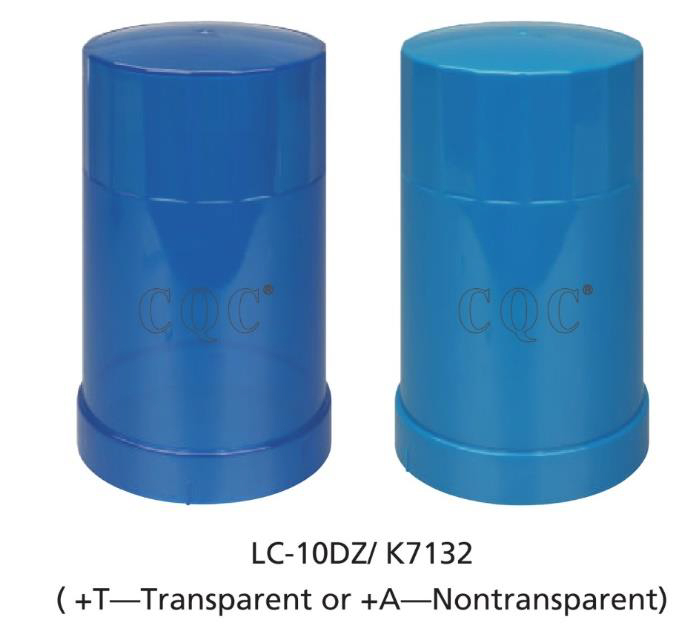

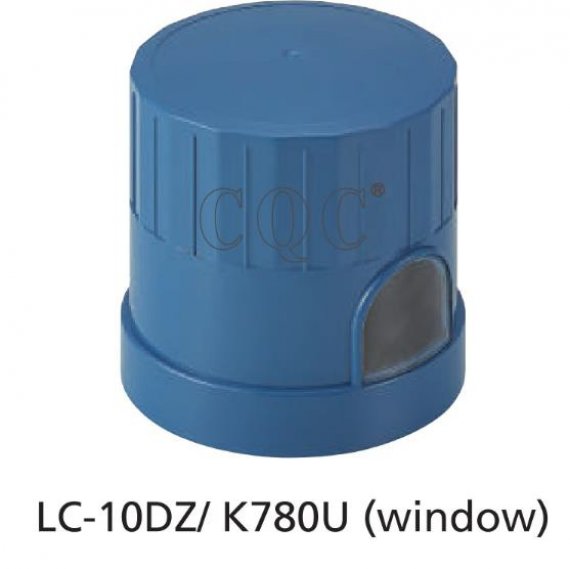

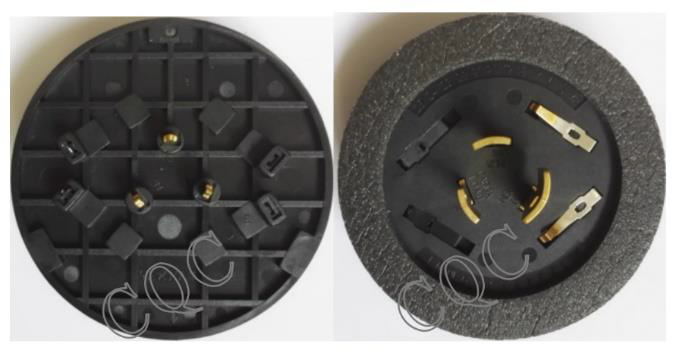

NEMA 7pin Controller Enclosure (LC-10DZ)

Various enclosures for NEMA 7pin controller.

  • Waterproof type
  • Enclosure with window
  • Transparent or Nontransparent

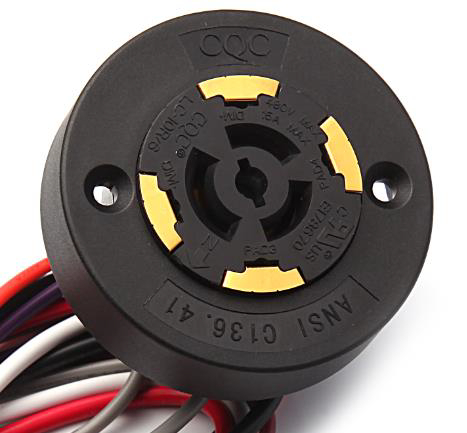

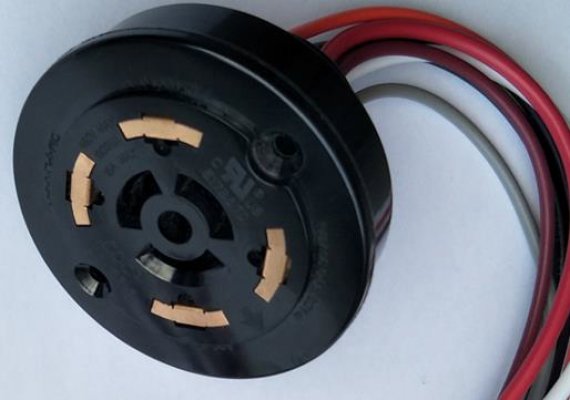

Dimming Photocontrol Receptacle (Rotatable) (LC-10R/6)

Addressable locking type dimming photocontrol receptacle.

The ANSI C136.41 compliant dimming receptacle and contact pads which provide an electrical and mechanical interconnection between an ANSI C136.41 photo control cell and luminaire.

The ANSI C136.41 compliant dimming receptacle is available with two or four dimmingcontacts to support either 0-30VDC dimming methods or Digital Addressable Lighting Interface.

  • ANSI C136.41 Standard
  • UL File Number: E178670
  • 3 AC Main Contact wires + 4 Dimming/signal wires
  • Material: DMC
  • Specification of wires:
    • Main Contact wire of receptacle: 14 AWG, UL1015
    • Signal wire: 18 AWG, UL1015

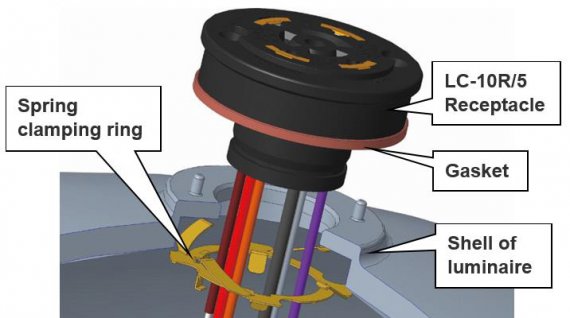

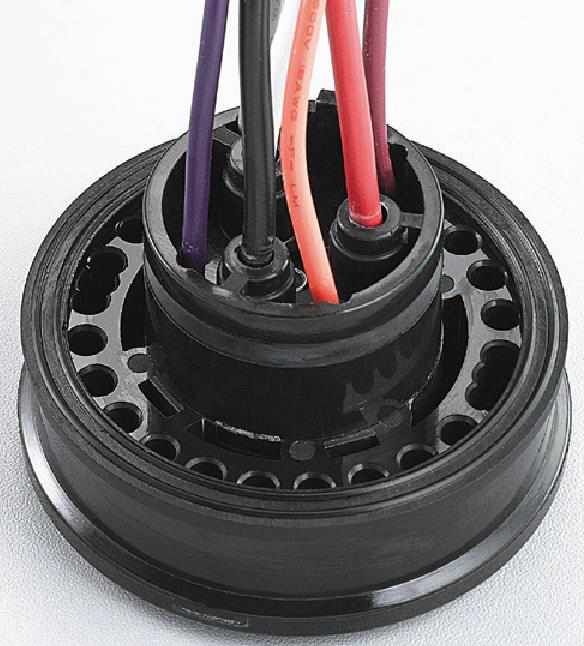

Dimming Photocontrol Receptacle (Rotatable optional) (LC-10R/5-7PHT)

  • ANSI C136.41 Standard
  • UL File Number: E178670
  • 3 AC Main Contact wires + 4 Dimming/signal wires
  • Material: DMC
  • Specification of wires:
    • Main Contact wire of receptacle: 14 AWG, UL1015
    • Signal wire: 18 AWG, UL1015
  • Tool-free rotatable installation

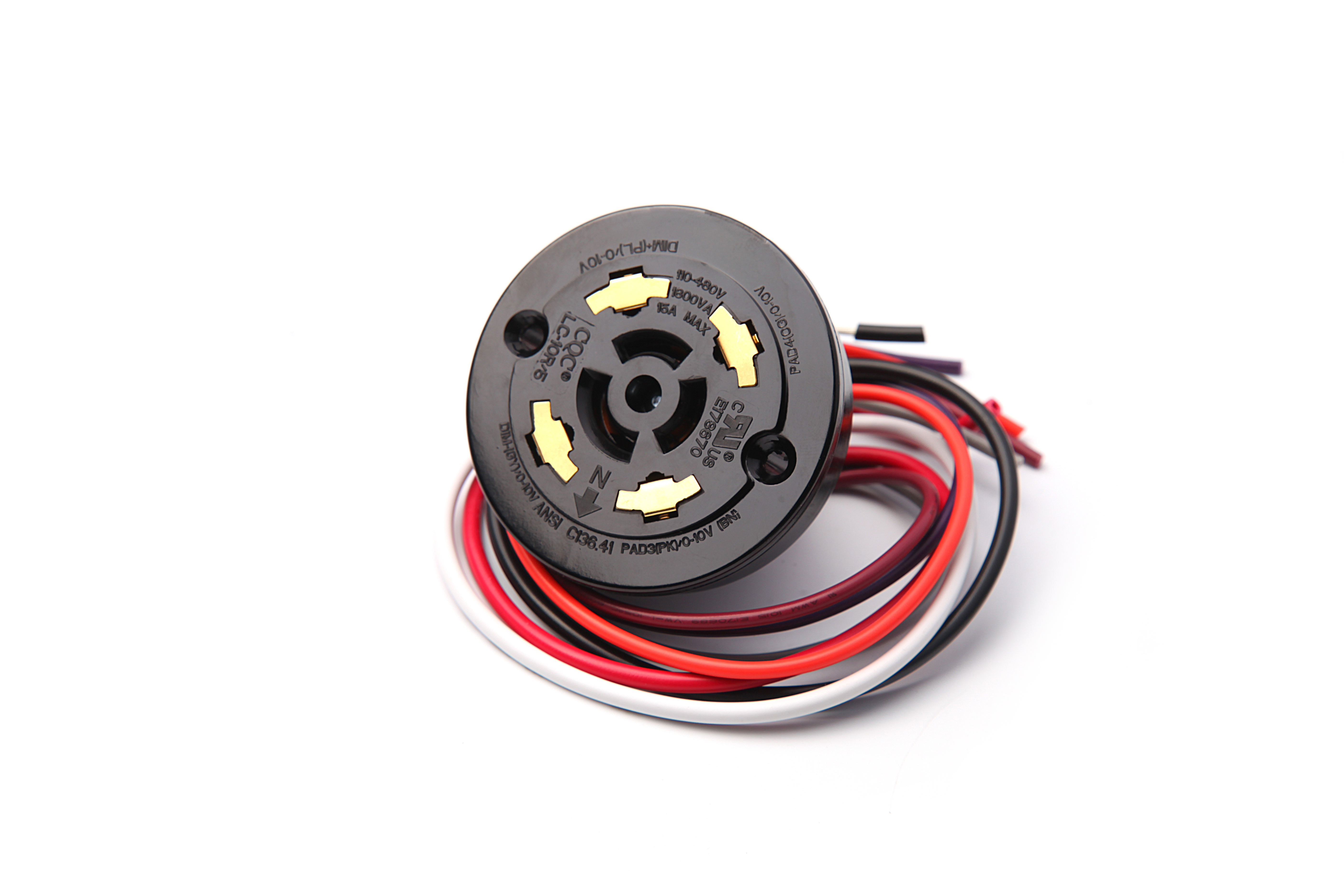

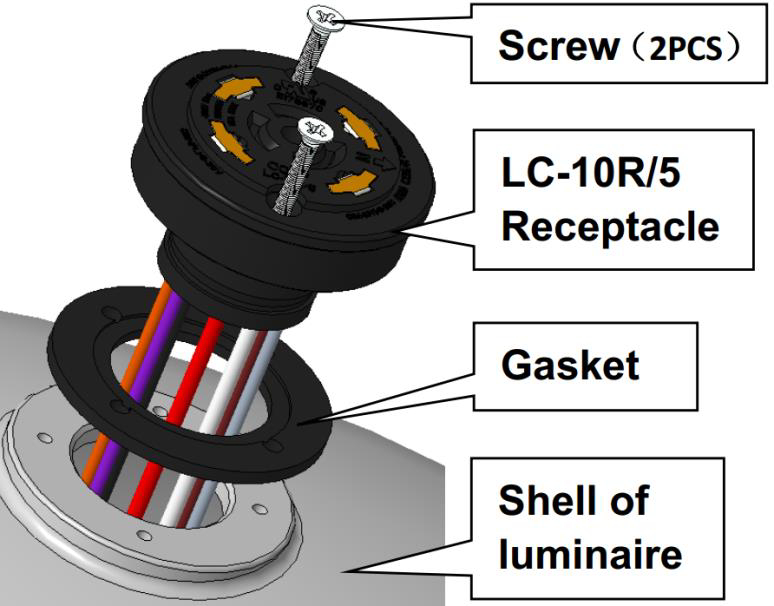

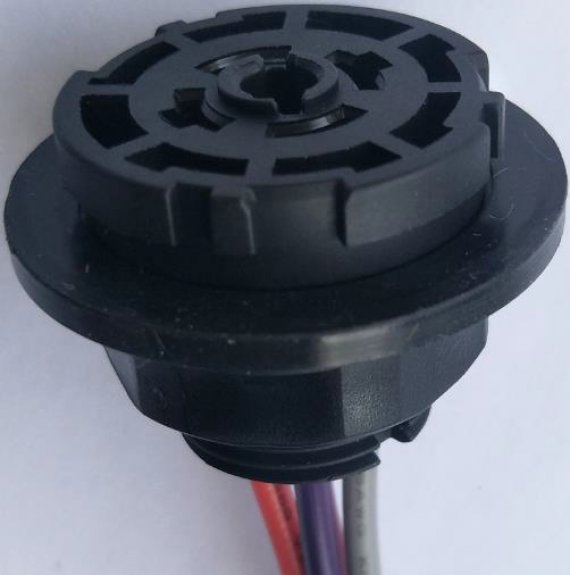

Dimming Photocontrol Receptacle (LC-10R/5-7PS)

  • CUL RECOGNIZED COMPONENT
  • UL File Number: E178670
  • Conform to ANSI C136.41 standard
  • 3 AC Main Contact wires + 4 Dimming/signal wires
  • Material: PF
  • Specification of wires:
    • Main Contact wire of receptacle: 14 AWG, Ul1015
    • Signal wire: 18 AWG, UL1015.



Zhaga Book 18 Receptacle (LC-12R)

  • Contacts rating: 1.5A, 30V 4 pole contacts
  • Mounting: M20X1.5 thread

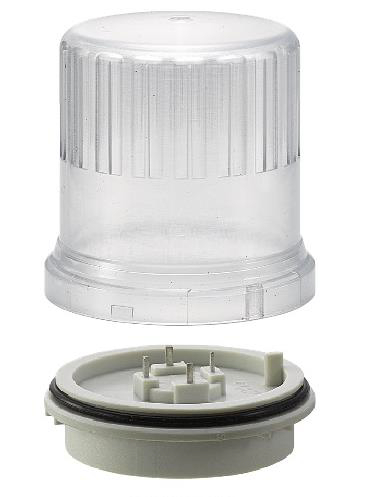

Zhaga Book 18 Controller Enclosure (LC-12D)

Various controller enclosures (see pictures). Base diameter 40mm or 80mm.

Product website:
http://cn-cqc.com/
