Characteristics

• including IQRF communication module
• system reacts to the user attendance in front of the urinal at a maximum distance of 0,7 m, minimum stay time in active range is 7,5 s
• water flows after the user leaves active range
• adjustable flushing time 0,5 - 15,5 s
• parameters adjustment by remote control SLD 03 or by remote access
• automatic hygiene flushing after 24 hours non-use
• possibility to regulate a water flow by the ball valve

Technical Specification

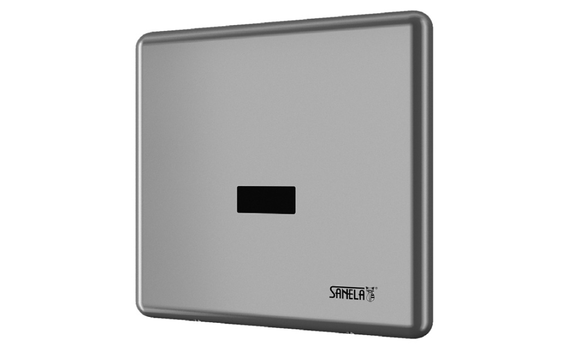

Stainless steel cover dimension: 170 x 170 x 10 mm
Mounting box dimension: 140 x 140 x 75 mm

Operating voltage

• SLP 02KQ: 24 V DC
• SLP 02KZQ: 230 V AC/50 Hz

Power input

• operating by 24 V DC: 7 W

Active range: 0,6 - 0,75 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet male thread: G 3/4"
Water outlet male thread: G 3/4"

IQRF remote access

• complex and customized project solution
• remote access to individual products
• wireless network for communication with the application
• efficient monitoring of water (soap) consumption
• maximum savings in operating costs

Documentation
