Check the new COOPER IQ by HARWARIO!
25 February 2019

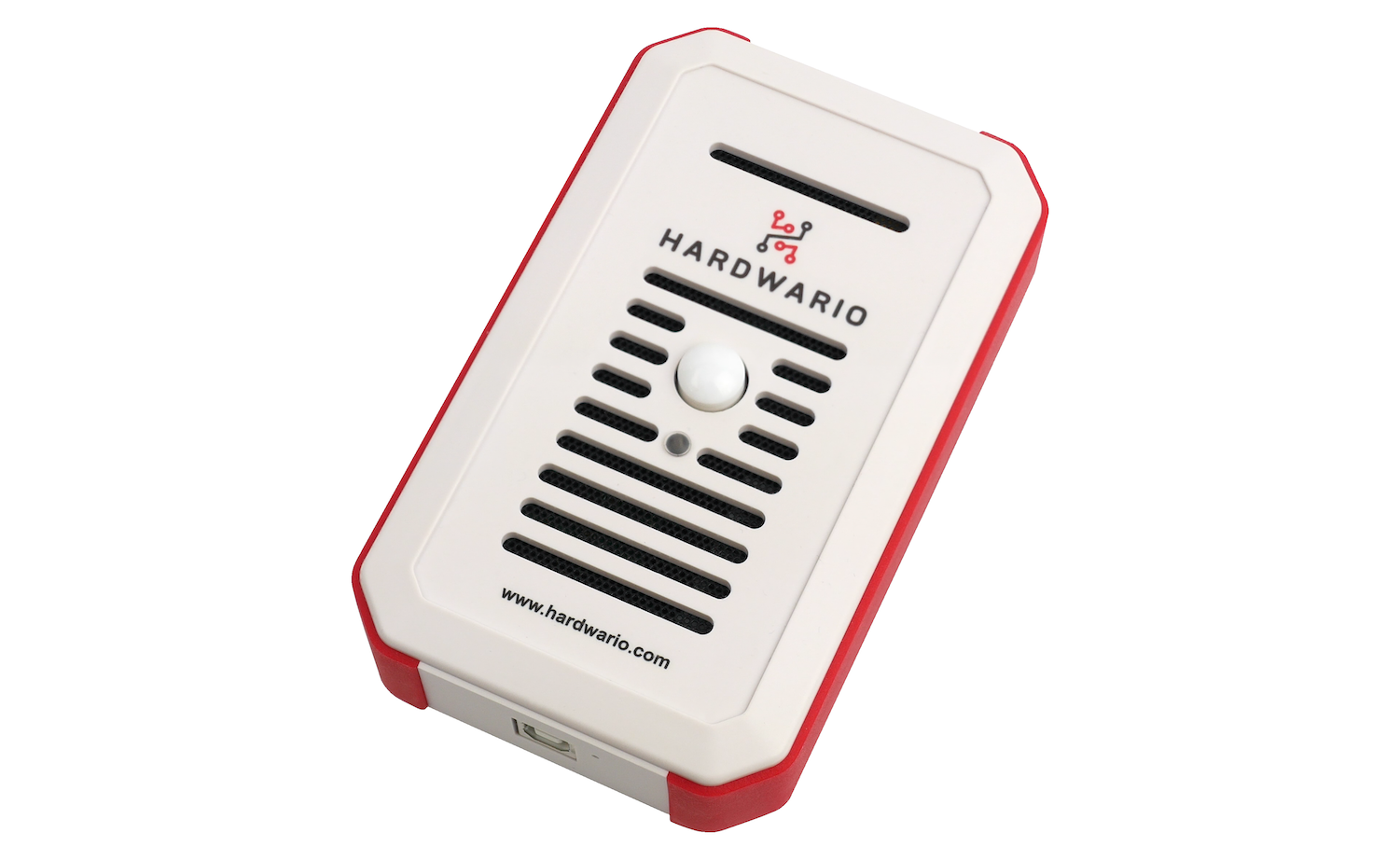

COOPER IQ is the multisensor IoT platform for indoor.
The platform has been designed to meet the highest quality standards for low-power sensing and wireless communication. It features 11 built-in sensors, including state-of-the-art CO2 NDIR sensor. Full customization of the device is possible - colors, logo printing, sensor assembly, application behavior, and communication technology.
The battery life-span of the platform is up to 3 years.
Features
- Battery operation (3 x AA 1.5 V)
- IQRF radio
- Bluetooth Low Energy (optional)
- Push button with LED backlight
- Loudspeaker for voice output
- USB interface (with power support)
- Firmware updates over USB
- Integrated cryptochip
- Dimensions (mm): 45(l) x 88(w) x 33(h)
Sensors
- CO2
- VOC
- Temperature
- Humidity
- Motion (PIR)
- Acoustic sound
- Barometer + altimeter
- Light intensity
- Shock + tilt
Technical parameters
- Operating supply voltage: min. 3.1 V, max. 5.5 V
- Operating temperature: -20 / +70°C
