Marketplace

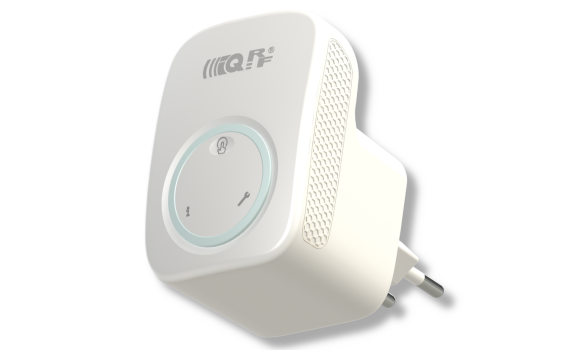

IQD-REP-02-W1D

IQRF signal repeater into a power socket

Company info:

Name: MICRORISC s.r.o.
Street: Prumyslova 1275
City: Jicin
Country: Czech Republic

Info about product

IQRF Interoperable

RF mode-std

Category: gws, dongles and routers
Status: Available
Manufacturer Name: MICRORISC
HWPID: 10244 (0x2804)
Product Version: 1
Power Supply: 100-240Vac (5V, 3W)
Manuf. Location: Czech Republic

IQD-REP-02 is a repeater for extending the IQRF signal range. The repeater, including the box, is adapted to use for continuous operation.



Features:

  • power supply 100-240Vac (Hi-Link power supply HLK-PM01 5V, 3W)
  • fuse, delayed, 250mA, 250V
  • power supply + fuse on separate dps
  • 1x button (button actuation indicated by a blue LED)
  • status indication: 2x red, 2x green LED
  • indoor use, temperature range 5-60 °C
  • SRAM memory 23LCV512-I / ST (SRAM 64kbit, SPI)
  • backup power supply SRAM and RTC supercapacitor 1F
  • power supply supervisory circuit
