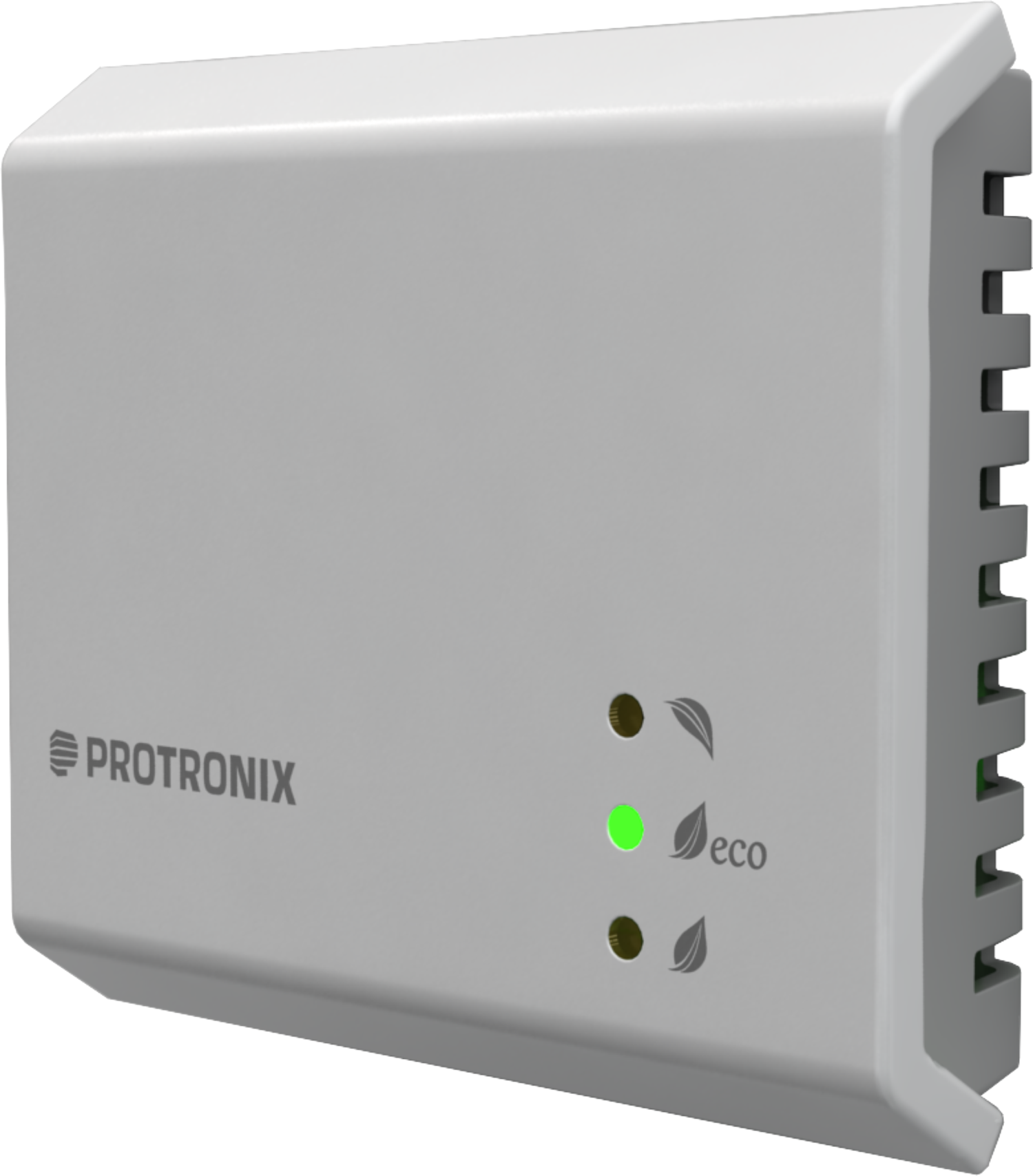

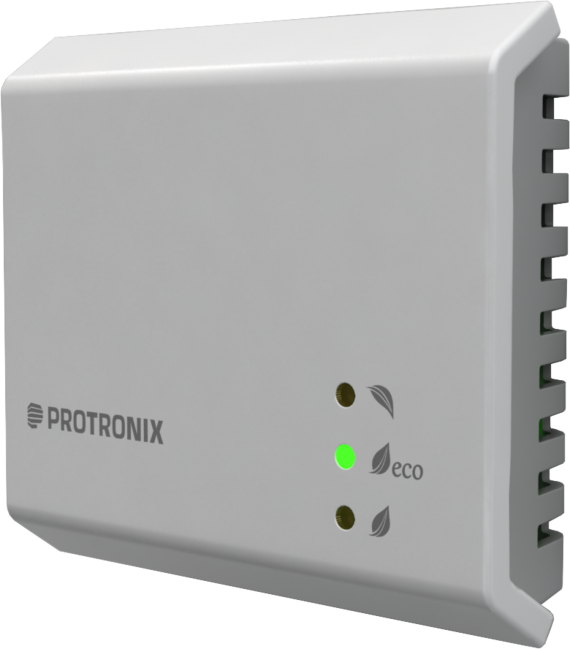

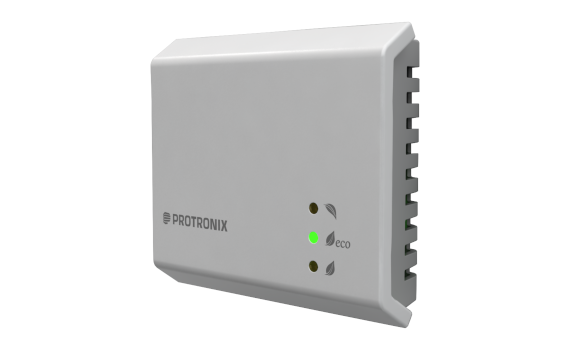

Protronix NLB-RH+T-IQRF battery combined sensor
Battery combined relative humidity and temperature IQRF sensor
- Category
- End Devices
- Status
- Available
- HWPID
- 20481 (0x5001)
- Product version
- 1
- Manufacturing location
- Czech Republic
Battery combined sensor NLB-RH-T-5-IQRF is used to monitor air quality inside buildings and power control ventilation (HVAC) systems according to current levels of air internal air quality. The sensor measures relative humidity (RH) and temperature (T) in air. It can be effectively used in offices, classrooms, shopping centers, homes, restaurants, fitness centers, commercial buildings, etc.
- Battery supply voltage - AA, LR6
- RH measuring range - 0-100% RH
- T measuring range - 0-40 °C
Not required maintenance during operation
Long life and stability
Parameters
| Power supply | 2x AA |
|---|
Documentation
- ds-nlb-rh-t-iqrf-en-v1-200116-1.pdf (PDF, 379 kB)
- um-nlb-iqrf-komunikace-en-v2-191212.pdf (PDF, 978 kB)
- um-nlb-rh-t-iqrf-en-v1-200116-1.pdf (PDF, 794 kB)
