Marketplace

Liteplan MPR Compact LED Luminaires

MPR Compact LED Luminaires with IQRF

Company info:

Name: Liteplan Limited
Street: Apex House, Bryant Avenue
City: Romford
Country: United Kingdom

Info about product

IQRF Interoperable

RF mode-std

Category: end devices
Status: Available
Manufacturer Name: Liteplan Ltd.
HWPID: -1 (0xffffffffffffffff)
Product Version: 1
Power Supply: 230-240 Volts AC – 50/60Hz
Manuf. Location: United Kingdom

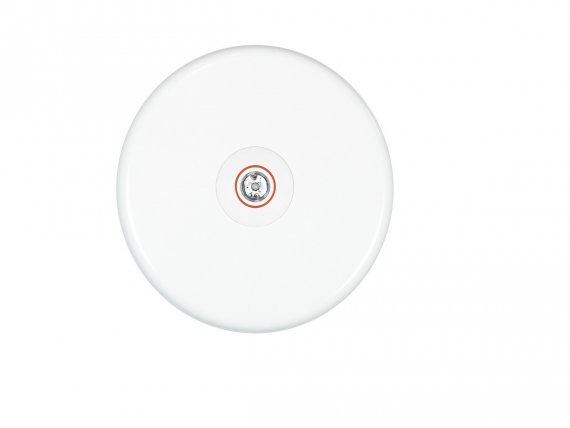

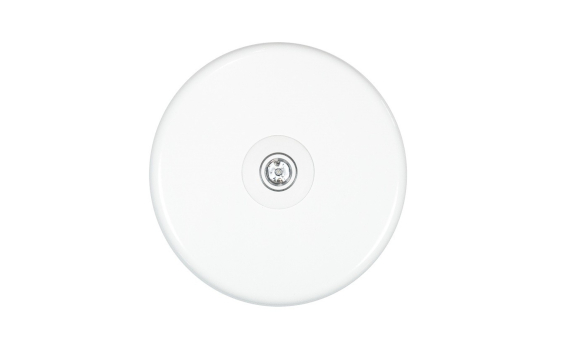

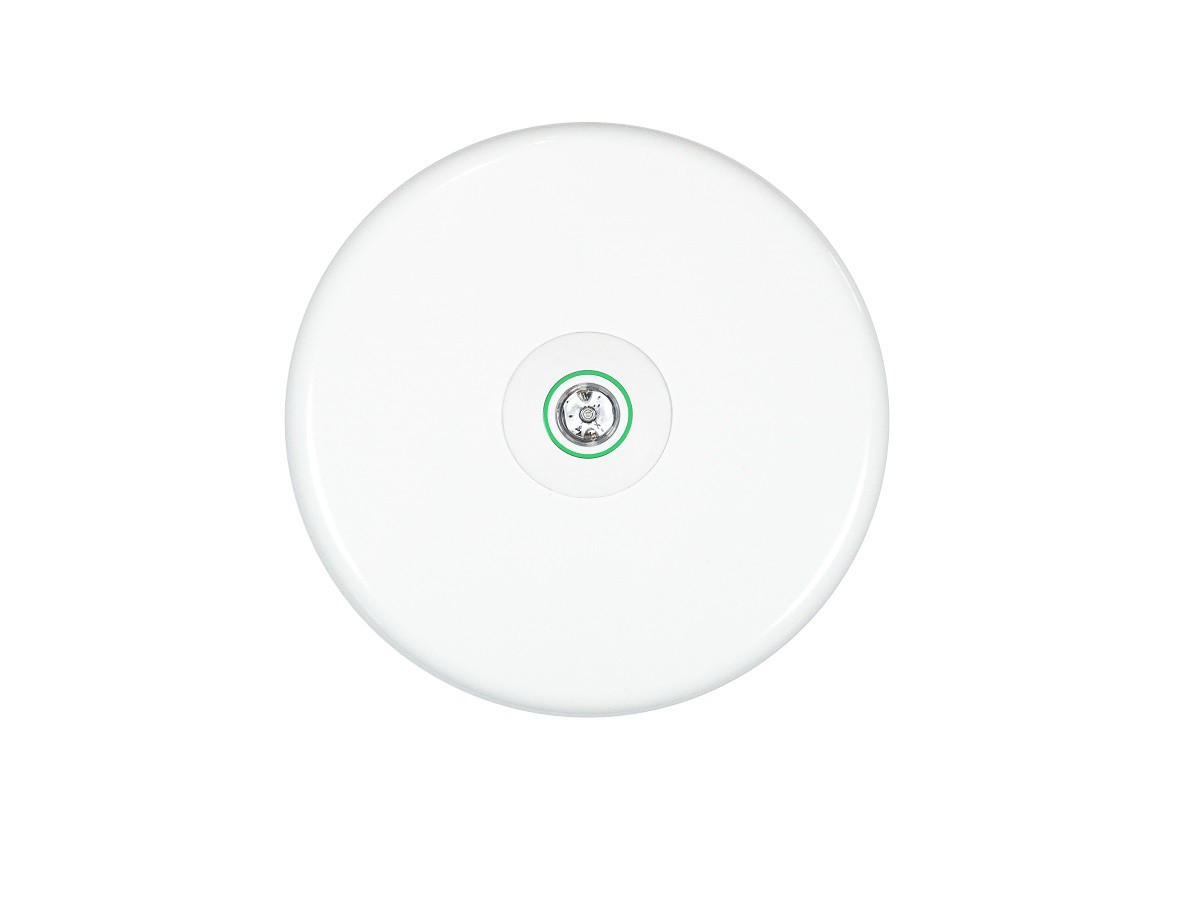

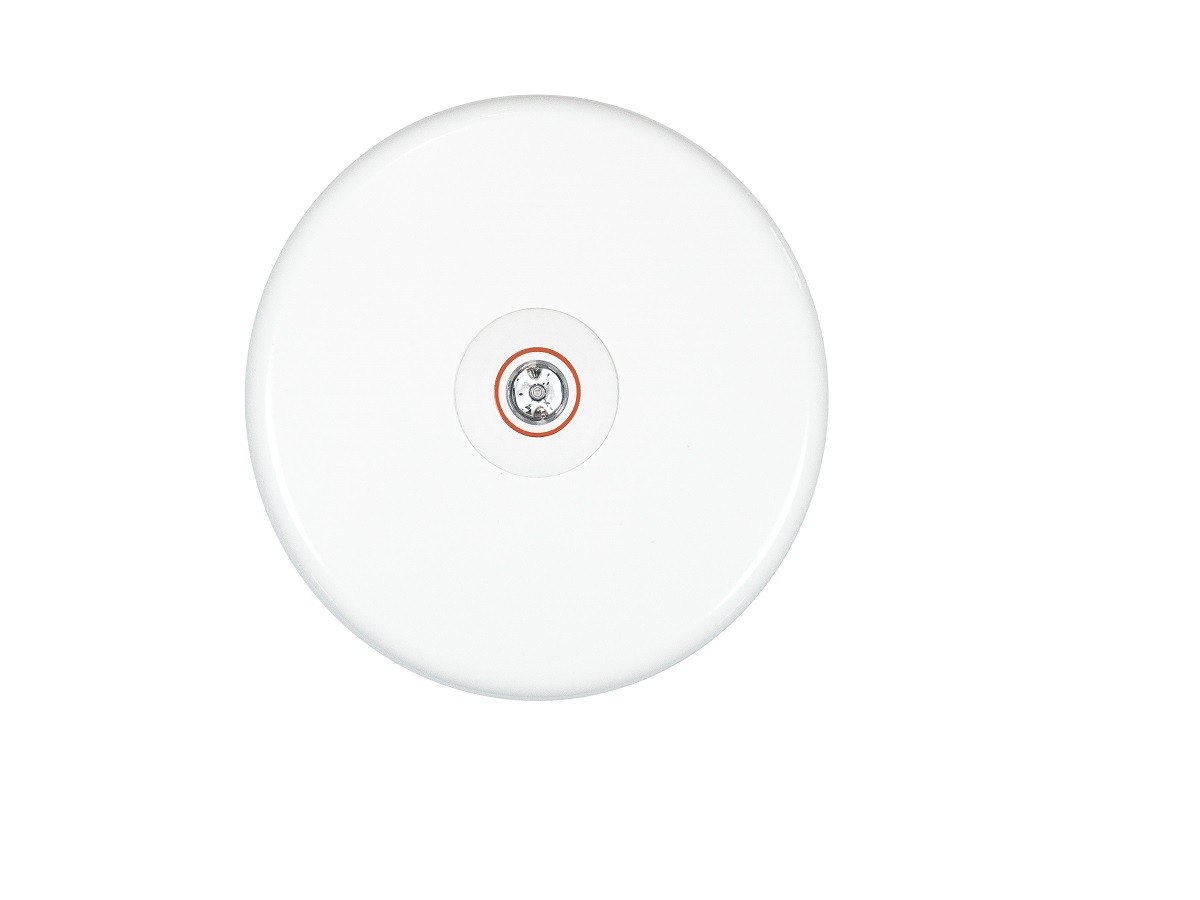

A round compact 3 Watt self-contained emergency LED luminaire, suitable for Non-Maintained applications with standard operation as well as self-test and DALI self-test operation. The unit has been designed to utilize Liteplan's range of LED devices, with specific lenses for designated escape routes in corridors and walkways along with lenses for open plan areas like receptions and open plan office space. The output of the open area version is 266 delivered lumen and of the corridor version, the output is 268 delivered lumen. Whilst the standard emergency version operates with high capacity NiCd batteries, the self-test and DALI self-test versions operate with extra long life LiFePO4 batteries that dramatically reduce running costs and facilities maintenance drain.



Specifications

  • Standard, Self-Test and DALI Self-Test Options
  • Suitable for Open Area or Corridor Applications
  • High Capacity NiCd or LiFePO4 Batteries
  • LDT files available
  • White (RAL9016) or Black (RAL9005) Finish Availible
  • 30% Gloss Paint Finish



  MPR/CO MPR/OA
Lens Corridor Lens Open Area Lens
Input Voltage 230-240 Volts AC – 50/60Hz
Power Rating See Datasheet
Em. Duration 3 Hours
Light Source 1 x 3W
Battery Type NiCd or LiFePO4
Battery Voltage 3.6V NiCd or 9.6V LiFePO4
Battery Capacity 4.5Ah NiCd or 1.5Ah LiFePO4
Charge Current 200mA NiCd or 0-150mA Dual Rate LiFePO4
Recharge Time 24 Hours
Ambient Temp. 25°C Max.
IP Rating IP20
Dimensions Φ 185mm x 42mm
Weight 1.1kg



This product can be combined with IQRF DALI bridge.

Documentation

Eulumdat Mprmps Oa.ldt (LDT, 12.51 kB)

Eulumdat Mprmps Co.ldt (LDT, 12.72 kB)

Mpr St Datasheet Web.pdf (PDF, 186.3 kB)

Mpr St Installation Instruction.pdf (PDF, 315.5 kB)

Mpr Nm3 Installation Instruction.pdf (PDF, 333.52 kB)

Mpr Datasheet Web.pdf (PDF, 159.72 kB)

Mpr Da Datasheet Web.pdf (PDF, 190.82 kB)

Mpr Da Installation Instruction.pdf (PDF, 350.42 kB)

Mpr Ce Luminaire Led Complete.pdf (PDF, 109.19 kB)

2_self Test Dali Fault.pdf (PDF, 108.21 kB)

Product website:
http://www.liteplan.com
