Marketplace

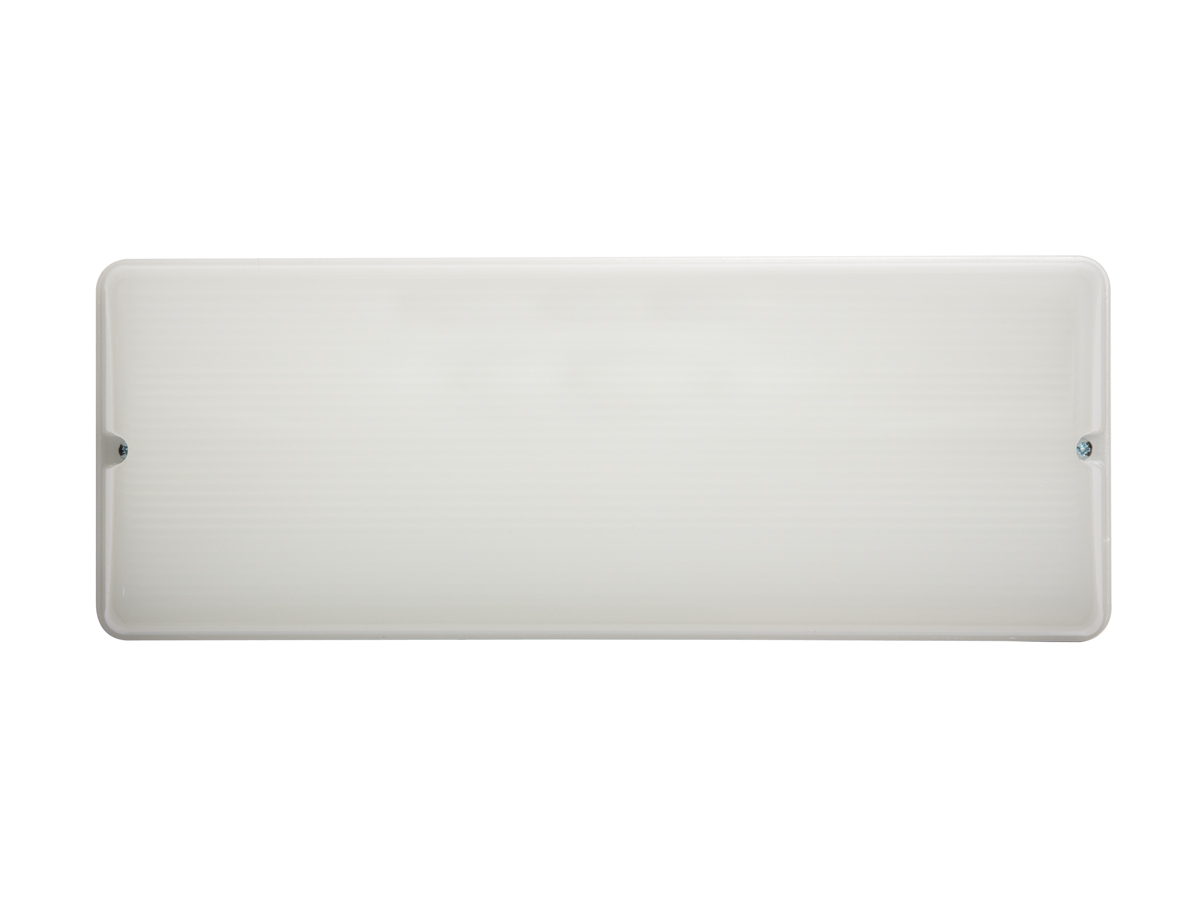

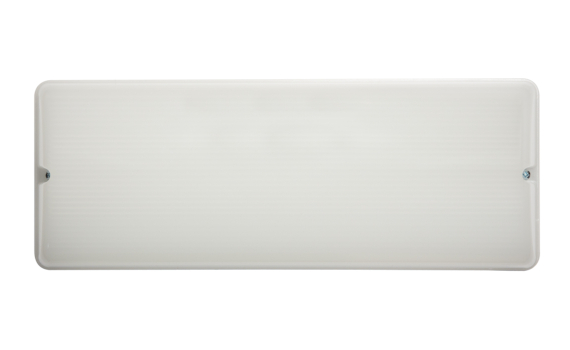

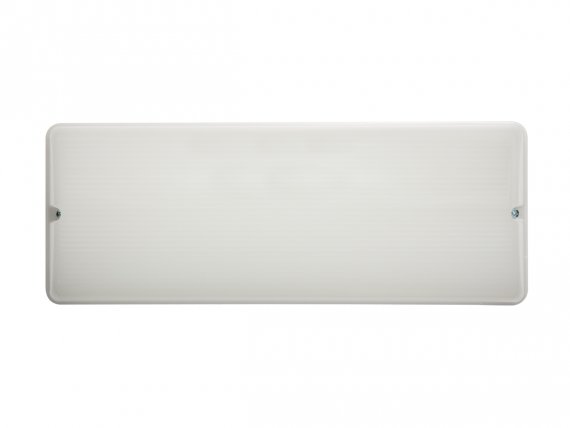

Liteplan FRO/6 LED Bulkhead

LED Bulkhead with IQRF

Company info:

Name: Liteplan Limited
Street: Apex House, Bryant Avenue
City: Romford
Country: United Kingdom

Info about product

IQRF Interoperable

RF mode-std

Category: end devices
Status: Available
Manufacturer Name: Liteplan Ltd.
HWPID: -1 (0xffffffffffffffff)
Product Version: 1
Power Supply: 220-240 Volts AC – 50/60Hz
Manuf. Location: United Kingdom

A high output, robust bulkhead luminaire suitable for high ceilings. The body of the fitting is IP65 weatherproof rated as standard. High quality U.V. stabilised white base molding and an opal diffuser which is specifically designed to maximise the light output ratio (LOR) from the LED light source. The output, after the diffuser, is 950 delivered lumen in mains operation and 650 delivered lumen in emergency operation, making this the perfect solution for warehousing or high ceiling applications.



Specifications

  • High Output LED Bulkhead
  • Suitable for High Ceiling Applications
  • IP65 Weatherproof Gasket Factory Fitted
  • Simple Hinged Gear Tray Assembly
  • Semi-recessing Kits Available
  • Photo-metrically Tested by The LIA
  • 950 Delivered Lumen in Mains Operation
  • 650 Delivered Lumen in Emergency Operation



  FRO/6/M3 FRO/6/NM3
Input Voltage 220-240 Volts AC – 50/60Hz
Power Rating 12.0W 4.5W
Em. Duration 3 Hours
Light Source Helvar LS-282-840 LED Strip
Battery Type NiCd
Battery Voltage 7.2V
Battery Capacity 4.5Ah
Charge Current 200mA
Recharge Time 24 Hours
Cut-Off Voltage 6.5V
Discharge Current 1.1A
Ambient Temp. 0°C to 35°C
IP Rating IP65
Dimensions 370mm x 140mm x 89mm
Weight 2.6kg 2.5kg





This product can be combined with IQRF DALI bridge.

Documentation

Fro 6 Datasheet Web.pdf (PDF, 160.62 kB)

Fro 6 Installation Instruction.pdf (PDF, 447.9 kB)

Fro 6 Ce Luminaire Led Complete.pdf (PDF, 109.24 kB)

Fro 6 Mains.ldt (LDT, 21.54 kB)

Fro 6 Emergency.ldt (LDT, 21.57 kB)

Product website:
http://www.liteplan.com
