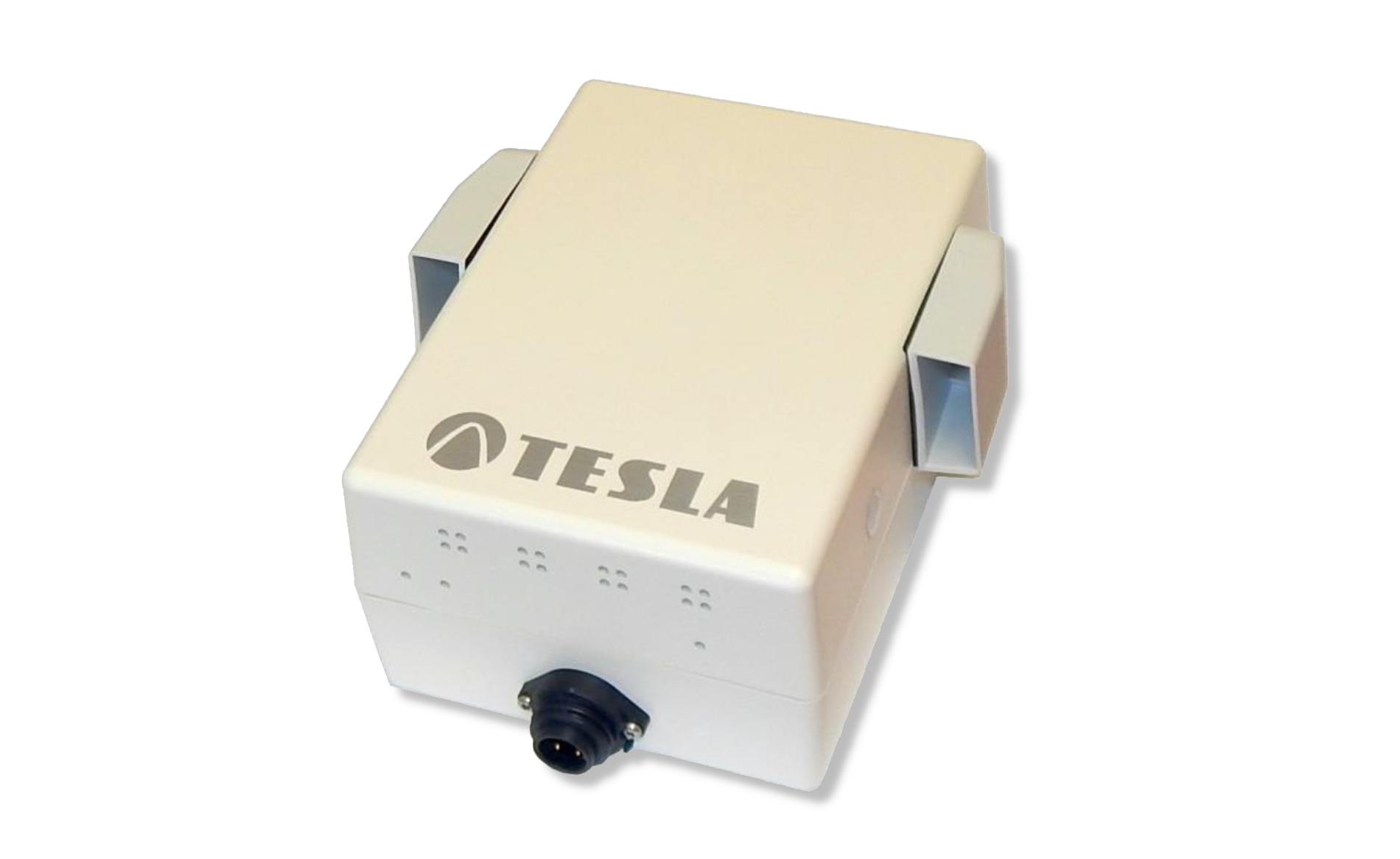

TESLA BLATNÁ Environmental module with 9 sensors
Smart City environmental module with 9 sensors capable of measuring CO, humidity, NO2, SO2 etc.
Name: TESLA BLATNÁ, a.s.
Street: Palackého 644
Country: Czech Republic
Info about product
Category: end devices
Manufacturer Name: Tesla Blatná, a.s.
HWPID: 17 (0x0011)
Product Version: 1
Tesla Blatná developed modular sensor to measure the key parameters of air quality, interoperable with IQRF Ecosystem (can extend funcionality of street lighting solutions).
The device must be scalable for other sensors, if necessary. The number of devices can exceed thouusands in the city.
Smart City environmental module contains 9 sensors and is capable of measuring:
- CO (0-500 ppm)
- NO2 (0-20 ppm)
- humidity (0-100% RH)
- light VIS/UVA/UVB (0-100%)
- temperature (-40°C to +125°C)
- pressure (260-1260 hPa)
- SO2 (0-50 ppm)
- O3 (0-20 ppm)
- dust (25-500 µg/m3)
A combined environmental module contains mostly used sensors for outside environment in a city.
Based on measured values warnings for citizens can be made in case of limit values exceeding.
This combined sensors can be connected to the common IQRF network containing devices also of other vendors to work together, typically street lights.
IQRF network can host more than 200 devices. In case of more devices needed, additional networks on different channels can be made.
Values from all sensors can be collected in a bulk within seconds.
Communication is bi-directional which means that also device control or automation can be done.
Smart City Environment Module.pdf (PDF, 199.22 kB)
