Liteplan DNA/1 DALI Addressable Conversion Kit

DALI Addressable Conversion Kit

Company info:

Name: Liteplan Limited
Street: Apex House, Bryant Avenue
City: Romford
Country: United Kingdom

Info about product

IQRF Interoperable

RF mode-std

Category: end devices
Status: Available
Manufacturer Name: Liteplan Ltd.
HWPID: -1 (0xffffffffffffffff)
Product Version: 1
Power Supply: battery
Manuf. Location: United Kingdom

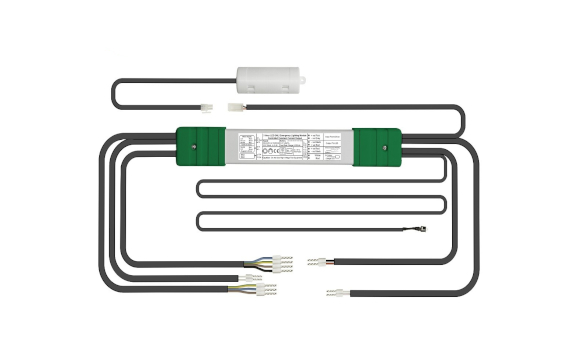

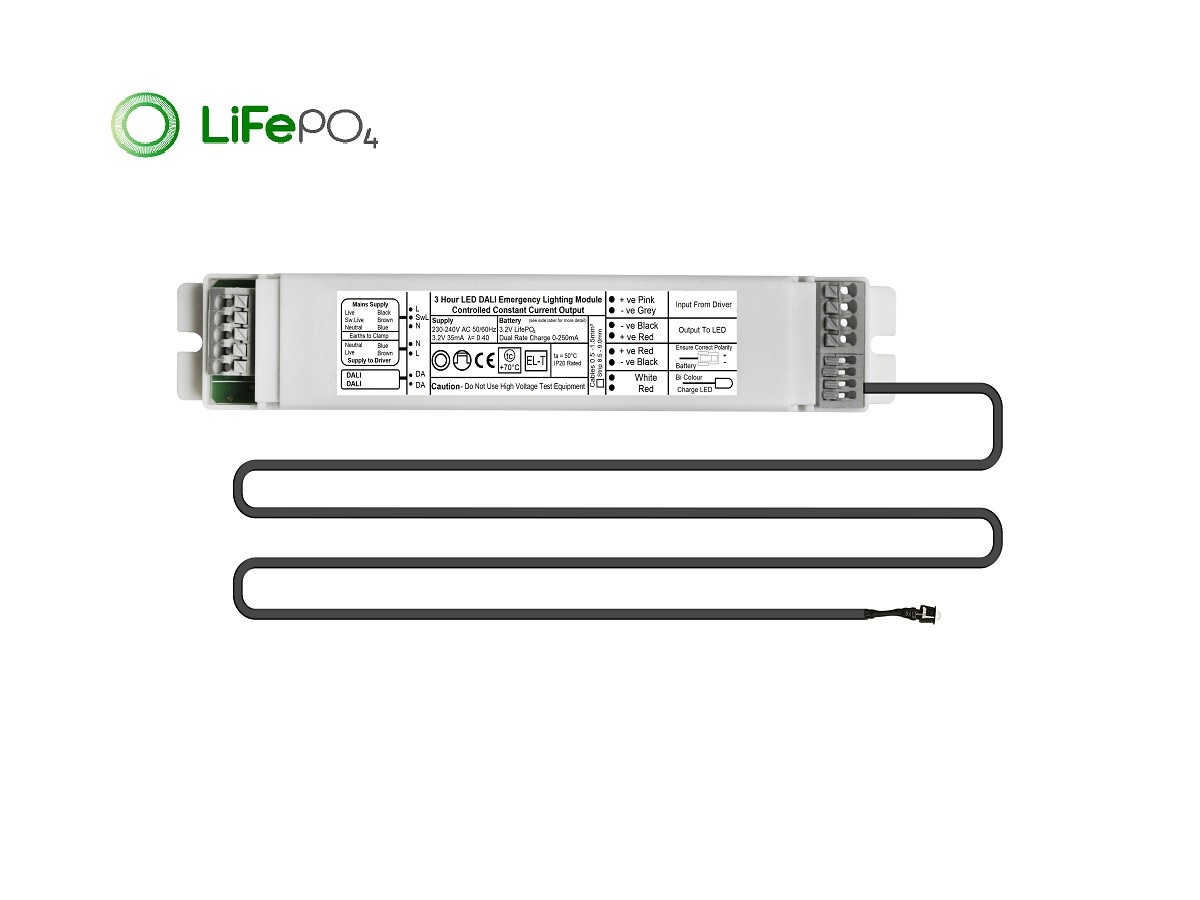

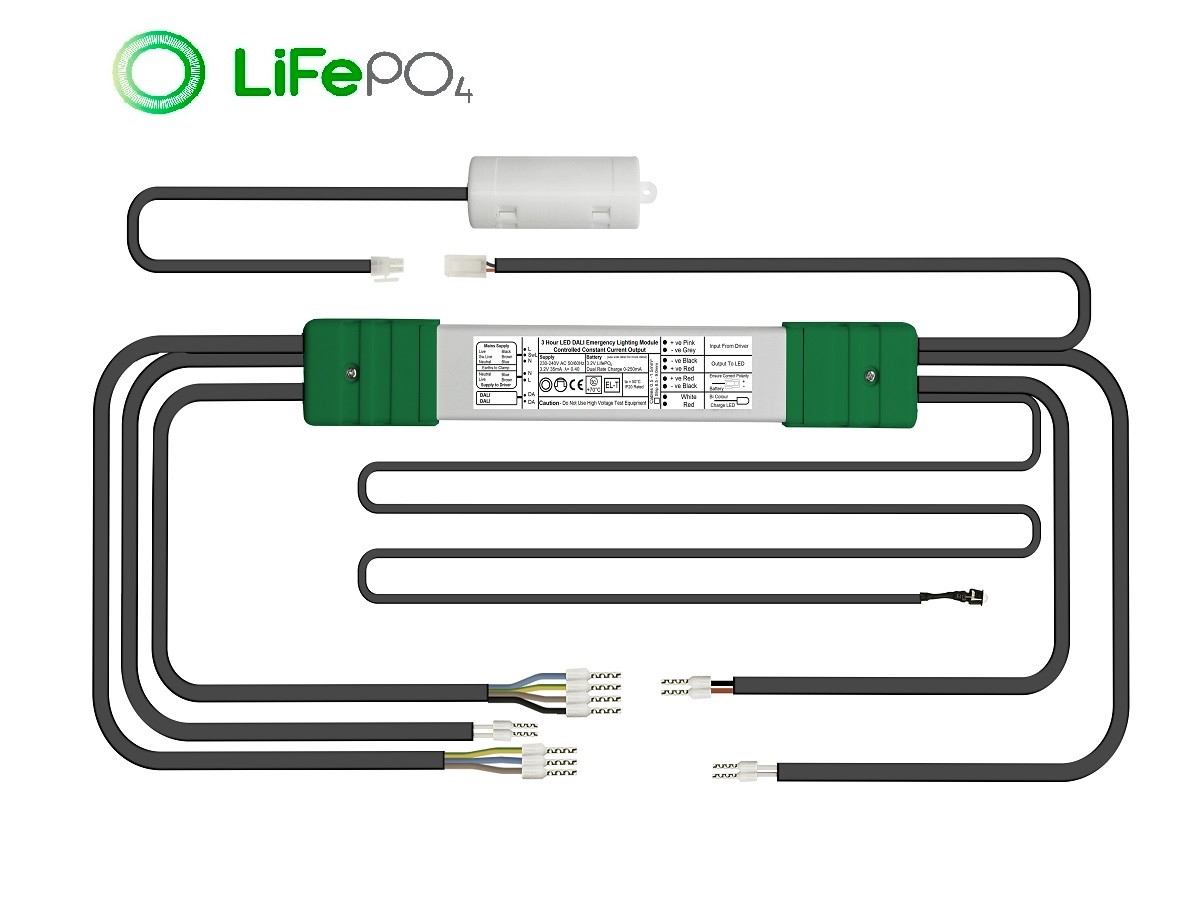

3 hour DALI Self-Test emergency lighting conversion kit, designed to suit an extremely wide range of LED types and circuits. The DNA/1 and DNA/1S automatically adjust the output LED current to provide the best match between the battery and the load, providing maximum illumination whilst ensuring full battery duration. The DNA/1 and DNA/1S will operate LED loads between 6-55V forward and the DNA/1/80 and the DNA/1S/80 will operate LED loads between 6 and 80V forward.

This product is fully DALI compliant and in keeping with the DALI Standard, if the module is commissioned without a DALI control system present, the unit will revert the standalone self-test, indicating its faults via the charge LED.

This product can be combined with IQRF DALI bridge.



Specifications

  • DiiA Registered DALI 1 Device
  • 2-pole Changeover Relay
  • Additional 3rd Pole Relay for Driver Protection
  • Deep Discharge Protection
  • Intelligent, Low Energy, Charging Circuit
  • Extra Long Life LiFePO4 Cells
  • Slim Module for Integral Mounting
  • Strain Relief Module for Remote Mounting



  DNA/1 DNA/1S DNA/1/80 DNA/1S/80
LED Voltage Range 6-55V 6-80V
I Rated 320mA - 35mA 320mA - 24mA
P Rated 3W - 80W 3W - 80W
LED Voltage Limit 55V 80V
Bat. Current Limit 1100mA
Mains Supply 230-240V AC 50/60Hz
Power Rating 1.3W 12.5mA λ = 0.44
Charge Current Dual Rate 0-250mA
Recharge Period 12 hours
Battery Pack

3.2V 3.8Ah

LiFePO4

3.2V 4.5Ah

LiFePO4

3.2V 3.8Ah

LiFePO4

3.2V 4.5Ah

LiFePO4

Battery Cut Off 2.5V
Ta 5°C to 25°C
Tc 5°C to 55°C
Integral Kit Size

Module - 178mm x 30mm x 22.5mm FC=172mm

Battery - 90mm 28mm Ø

Remote Kit Size

Module - 231mm x 33.6mm x 22.5mm FC=224mm

Battery - 94mm x 34.5mm Ø

Documentation

Self Test Dali Fault.pdf (PDF, 110.56 kB)

Faults On Dali Emergencies.pdf (PDF, 152.99 kB)

Dna 1 Tp40 Installation Instruction.pdf (PDF, 542.6 kB)

2019 Ce Selfcont Led Dna 1.pdf (PDF, 110.02 kB)

Dna 1 Output.pdf (PDF, 77.86 kB)
