Marketplace

Sensor SE03 T X (IQD-SE03-03B)

IQRF industrial temperature sensor

Get on E-shop

Company info:

Name: MICRORISC s.r.o.
Street: Prumyslova 1275
City: Jicin
Country: Czech Republic

Info about product

IQRF Interoperable

RF mode-lp

Category: end devices
Status: Available
Manufacturer Name: MICRORISC
HWPID: 7172 (0x1c04)
Product Version: 1
Power Supply: battery AA 3.6 V, 2400 mAh
Manuf. Location: Czech Republic

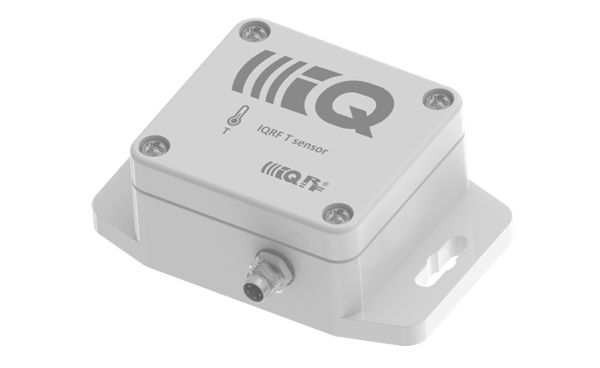

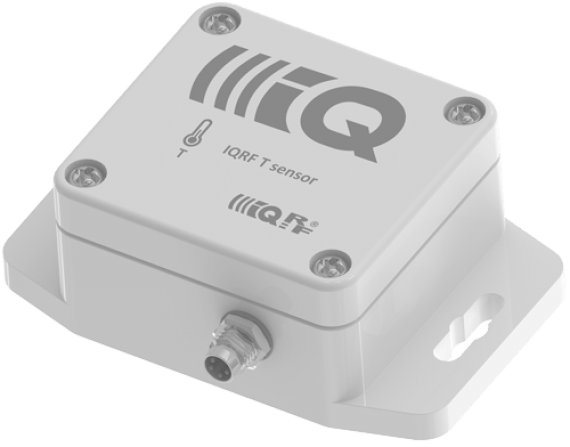

Industrial temperature sensor in a box with connector and waterproof IP67 protection.

The box is equipped with a connector to which a temperature sensor on the cable is connected.



Parameter Value
Dimensions 64 mm (94 mm with flange) x 58 mm x 35 mm
Weight 175 g
RF IQRF
Temperature

operation: 0°C to +45°C (recommended to maximize battery life)

temperature sensor range: -40°C to +85°C, the temperature sensor on cable (1.5 m)

Range

tens of meters indoor (depending on the environment and obstacles)

up to 400 m in open space

Battery life

expected: 10 years

guaranteed: 7 years, subject to operating and storage conditions

Protection class IP67
Power supply battery AA 3.6 V, 2400 mAh
RF broadband IQRF 868 MHz (916 MHz optionally)



MICRORISC Industrial X temperature sensor is part of the IQAROS 3D temperature monitoring system.



Compact design

The sensor is delivered in an industrial box with a connector to which the temperature sensor on the cable is connected.



Great range

Up to 400 m in open space, tens of meters indoor.



Low consumption

Devices using IQRF wireless technology can operate in a variety of operating modes, resulting in low power consumption and long life.



Freedom with wireless

Thanks to the battery design, you will save the installation of long and expensive cables, you will not have to make any interventions in the plaster or install the cover strips.



Accurate measurement

The temperature sensor is factory calibrated, so you will get comparable and correct temperature measurement results from different sensors.



10 years on battery

Observe operating conditions to ensure optimal battery and sensor life. We guarantee battery operation for at least 7 years if they are observed. It will serve you many times longer.



Product website:
https://iqaros.cz/sensor-industrial-x.html
