Marketplace

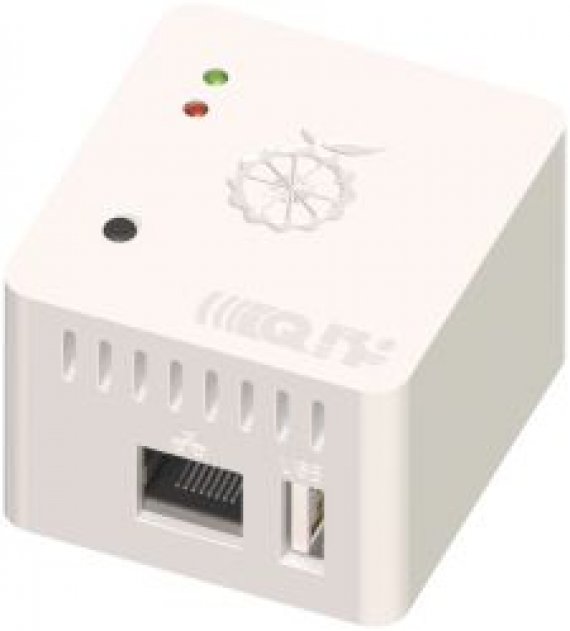

MICRORISC IQUBE

An IQRF gateway based on Orange Pi Zero and IQRF Gateway Daemon

Get on GitHub

Company info:

Name: MICRORISC s.r.o.
Street: Prumyslova 1275
City: Jicin
Country: Czech Republic

Info about product

IQRF Interoperable

RF mode-lp RF mode-std

Product ID: IQD-GW-02
Category: gws, dongles and routers
Status: Available
Manufacturer Name: MICRORISC
HWPID: 12292 (0x3004)
Product Version: 1
Power Supply: 2A at 5V with micro USB connector
Manuf. Location: Czech Republic

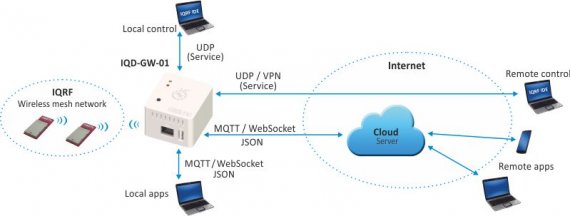

The easiest implementation of IQRF network Coordinator and the gateway with Internet / LAN connectivity enabling to control and manage wireless end devices.

It can easily be connected to existing clouds / servers (e.g. IBM Cloud, Microsoft Azure, AWS IoT or Hexio IoT).

  • Single-board computer Orange Pi Zero inside
  • TR-76D transceiver included
  • Ethernet connectivity, any cloud supported
  • Internal web application
  • Open source
  • Especially for low cost development, evaluation and samples.



Detailed information

Product website:
https://www.iqrf.org/product-detail/iqube-iqd-gw-02
