Marketplace

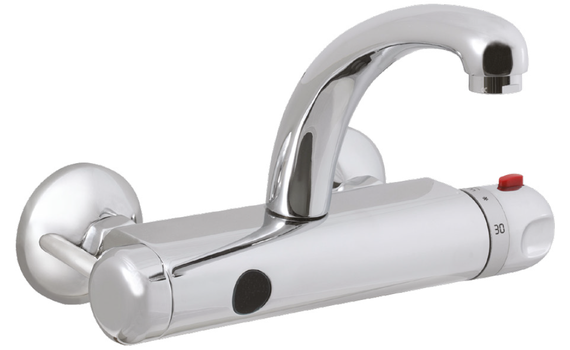

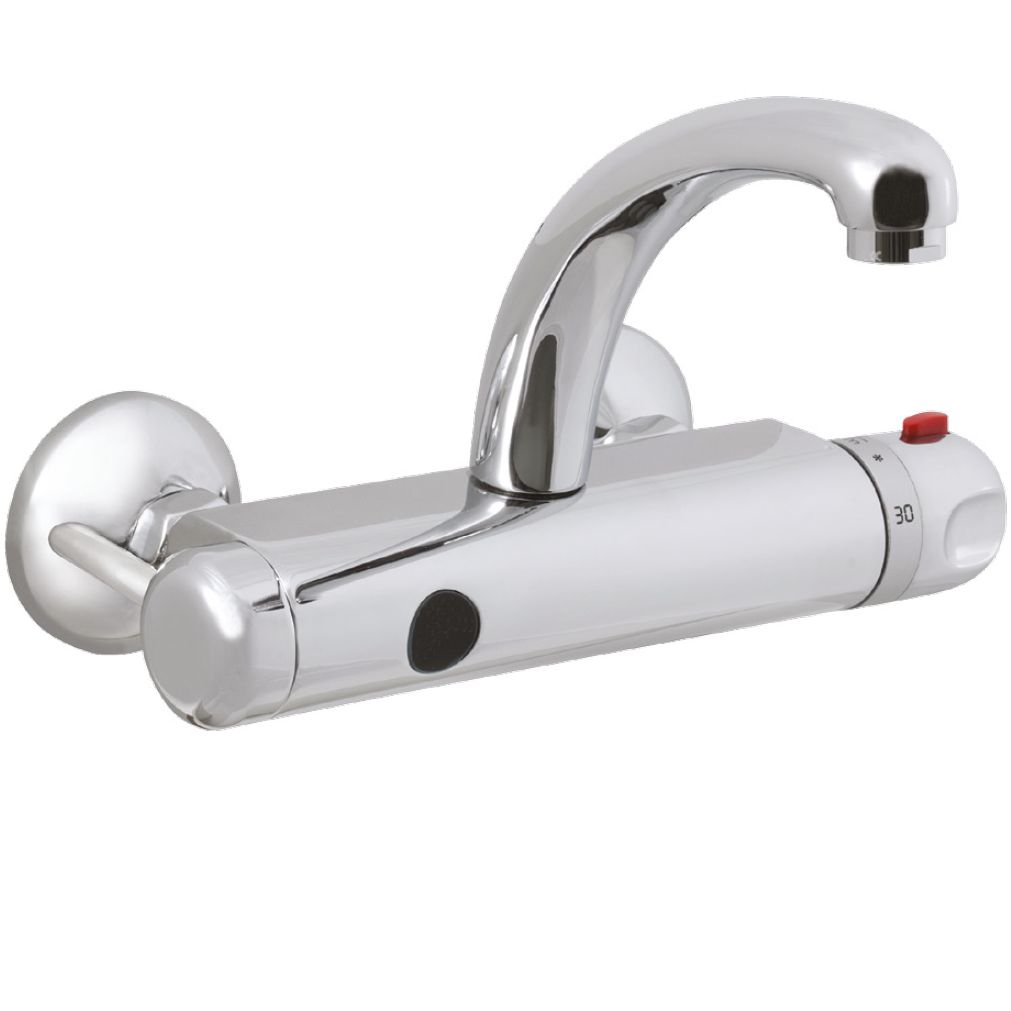

Sanela - Automatic Wall-mounted Thermostatic Washbasin Tap

Automatic Wall-mounted Thermostatic Washbasin Tap - for Remote Access IQRF (SLU 25Q)

Get on E-shop

Company info:

Name: SANELA spol. s r.o.
Street: Dukelských Hrdinů 989
City: Lanškroun
Country: Czech Republic

Info about product

Category: end devices
Status: New
Manufacturer Name: Sanela spol. s r.o.
HWPID: -1 (0xffffffffffffffff)
Power Supply: 24 V DC
Manuf. Location: Czech Republic

Characteristics

  • including IQRF communication module
  • economical aerator, rate of flow 6 l/min
  • hygienic flush
  • suitable for medical facilities
  • swivel faucet
  • is destined for cold and hot water, temperature is regulated by thermostatic mixer
  • safety fuse against scalding
  • stop flowing of hot water till 1 s in case of cold water failure
  • pressure of hot and cold water must be same
  • water is flowing as long as hands are in the active range
  • water stops flowing after removal of hands from the active range of sensor after adjustable time delay (can be set in range 0,25 – 7,75 s)
  • function of automatic water stop after 5 minut of continuous flow
  • START/STOP program
  • parameter adjustment using by the remote control SLD 03 or by remote access

Technical Specification

SLU 25Q: water inlet spacing 150 mm
SLU 25KQ: water inlet spacing 100 mm
Operating voltage: 24 V DC
Power input: 3 W
Active range

  • standard 0,25 - 0,35 m
  • START/STOP program 0,05 - 0,15 m

Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 6 l/min. (inf. data)
Water inlet: male thread G 1/2"

IQRF remote access

  • complex and customized project solution
  • remote access to individual products
  • wireless network for communication with the application
  • efficient monitoring of water (soap) consumption
  • maximum savings in operating costs

Documentation

Kl Slu 25q Aj.pdf (PDF, 234.82 kB)
