Marketplace

CITIQ Universal Gateway - MASTER CM -12XX / SLAVE CS-12XX

Data collectors and control unit for management of communication among installed IQRF components. Originally designed for smart parking system outdoor use, but could be used within different applications.

Company info:

Name: CITIQ s.r.o.
Country: Czech Republic

Info about product

RF mode-lp RF mode-std

Product ID: CM-12XX / CS-12XX
Category: gws, dongles and routers
Status: Preliminary
Manufacturer Name: CITIQ s.r.o.
Product Version: 2
Power Supply: electricity eg. out of street lamp OR solar panel
Manuf. Location: Czech Republic

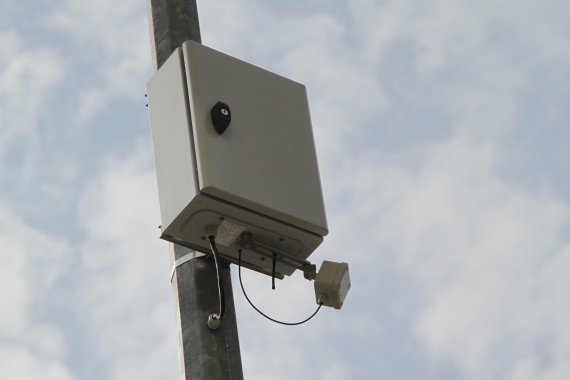

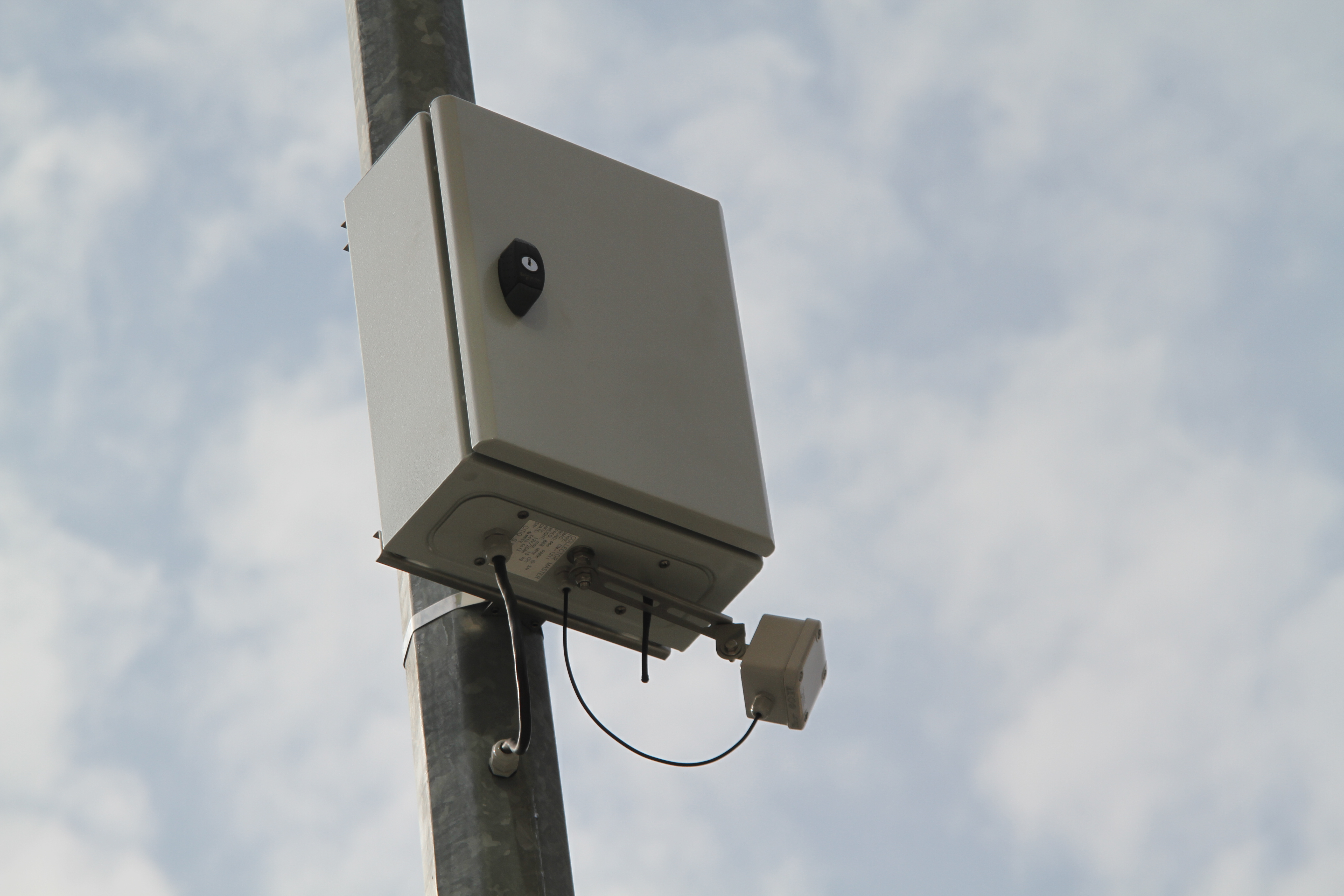

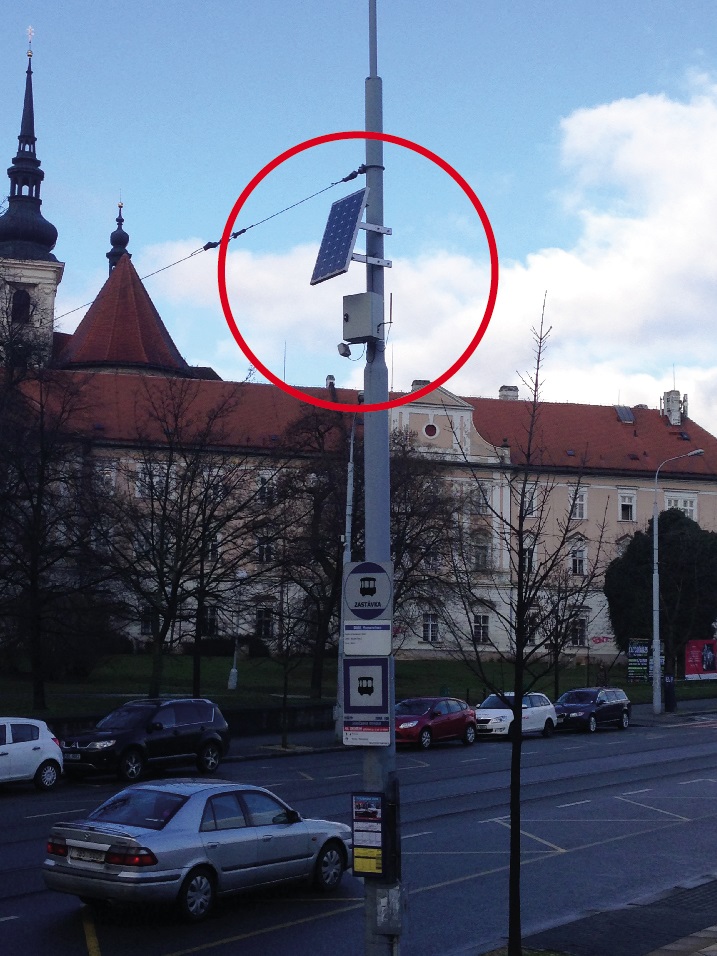

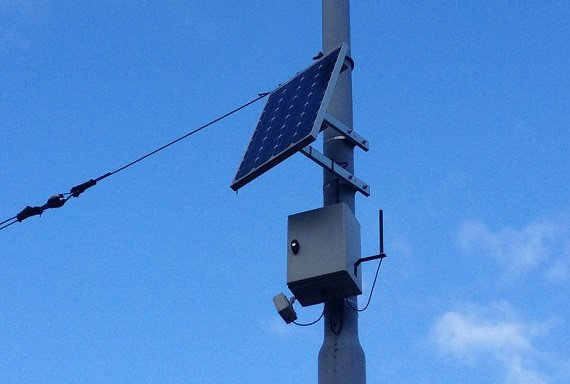

MASTER CM -1211 , CM -1212

Data collector and control unit for management of communication among installed IQRF components. Originally designed for smart parking system outdoor use, but could be used  within different applications.

Technical parameters

Installation: on a pole/post

Power supply: accumulator

Recharging variants: photovoltaic panel (60W), public lights supply

Communication: RF 868/916 Mhz (conforming to VO-R/10/09.2010-11), 3G/EDGE/GPRS

Operation temperature: −40 °C / +55 °C

Dimensions: 300 x 220 x 120 mm

Weight: max. 3 kg (without accumulator, without photovoltaic panel)

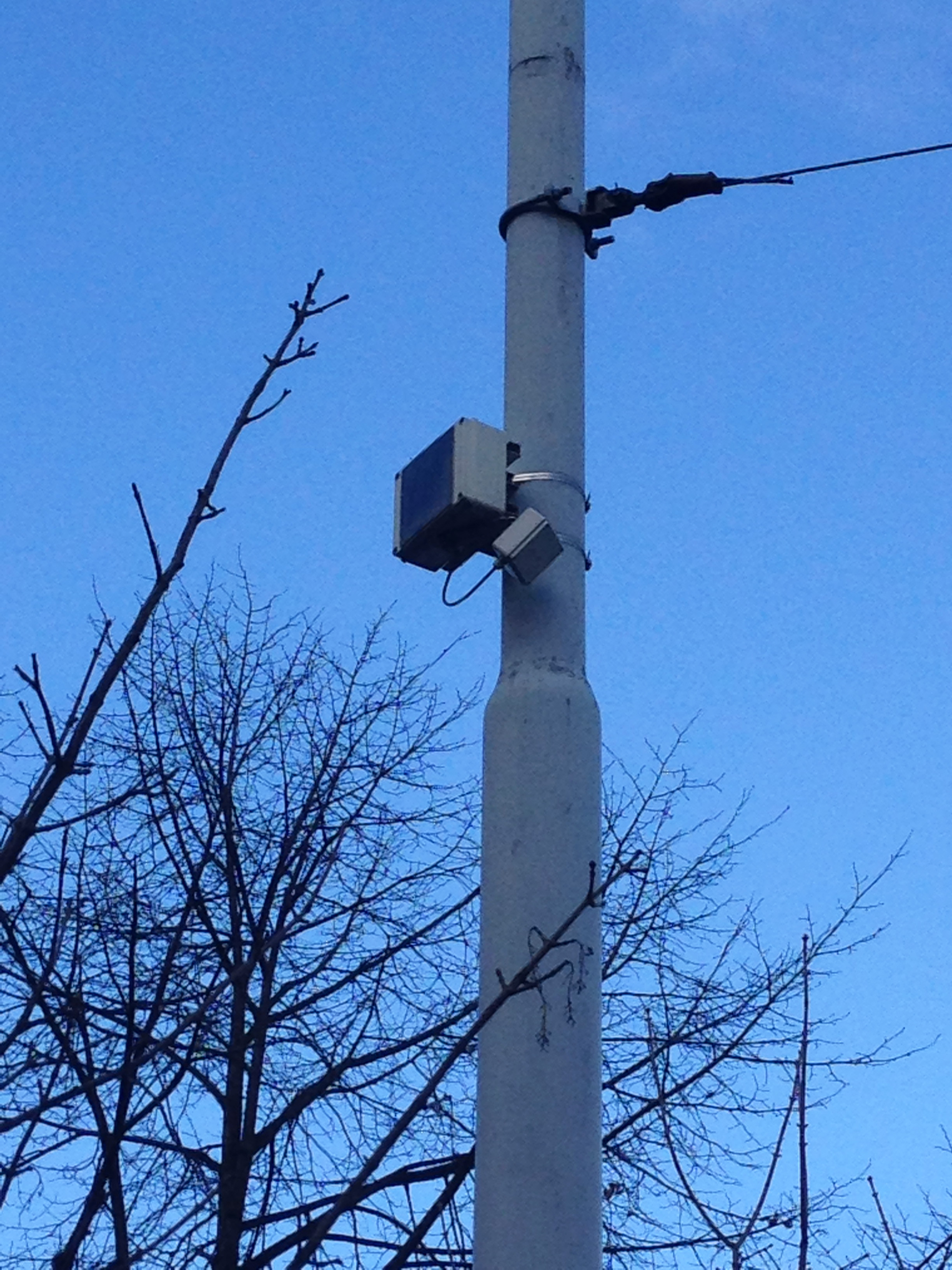

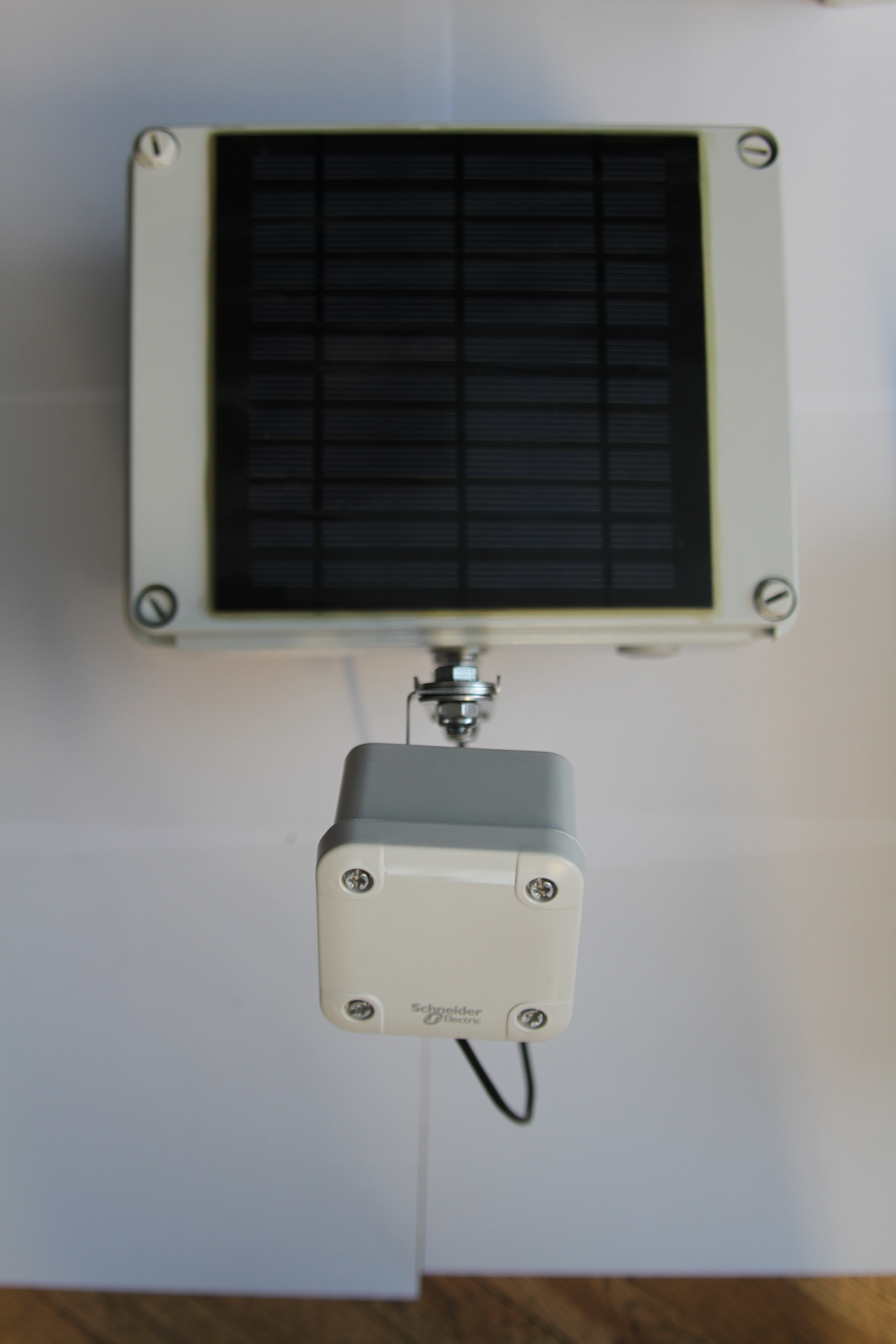

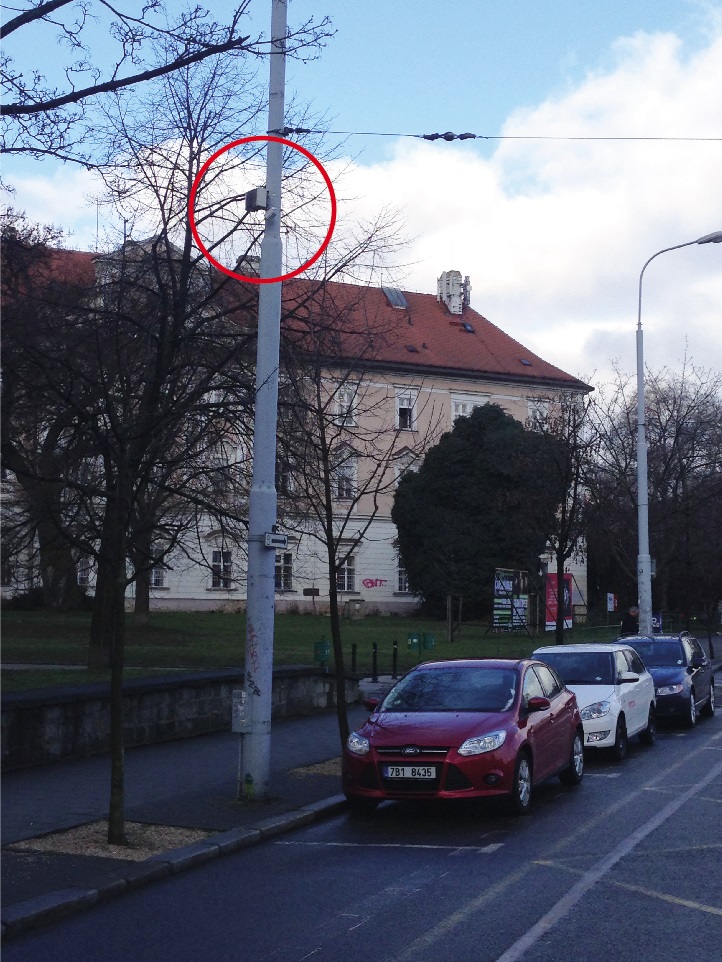

Collector SLAVE CS -1264F, CS-1262F

RF signal repeater. It provides the data transfer from detectors. It guarantees the coverage of RF signal by using its technology of wireless MESH network.

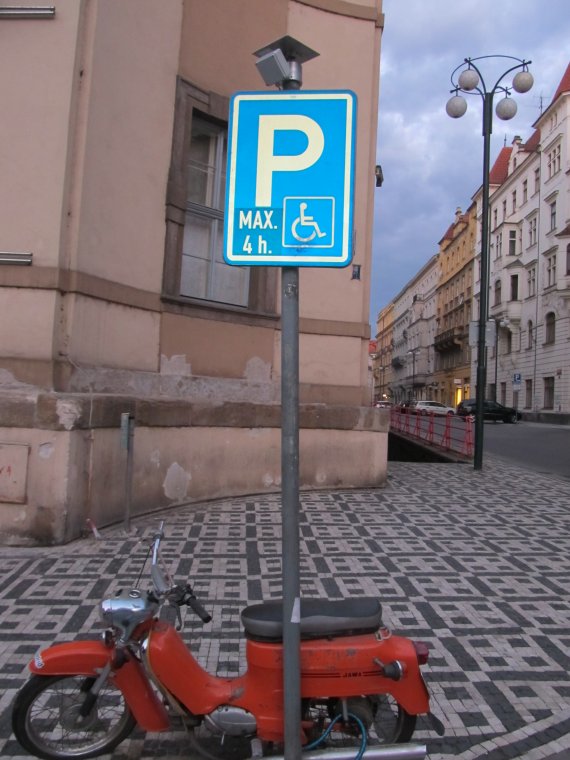

It could be designed in as standard box or could be used as special tube/cartidge inserted into the pole of eg. traffic sign to not disturb the environment of public space. e.g. historical impersion.

Technical parameters

Installation: on a pole/post

Power supply: accumulator

Recharging variants: photovoltaic panel (5W), public lights supply

Communication: RF 868/916 Mhz (conforming to VO-R/10/09.2010-11), 3G/EDGE/GPRS

Operation temperature: −40 °C / +55 °C

Dimensions: 240 x 190 x 90 mm

Weight: max. 3 kg (without photovoltaic panel)

Documentation

Citiq Park Datasheet Eng 04 2016.pdf (PDF, 242.78 kB)

Product website:
http://www.citiq.cz/
